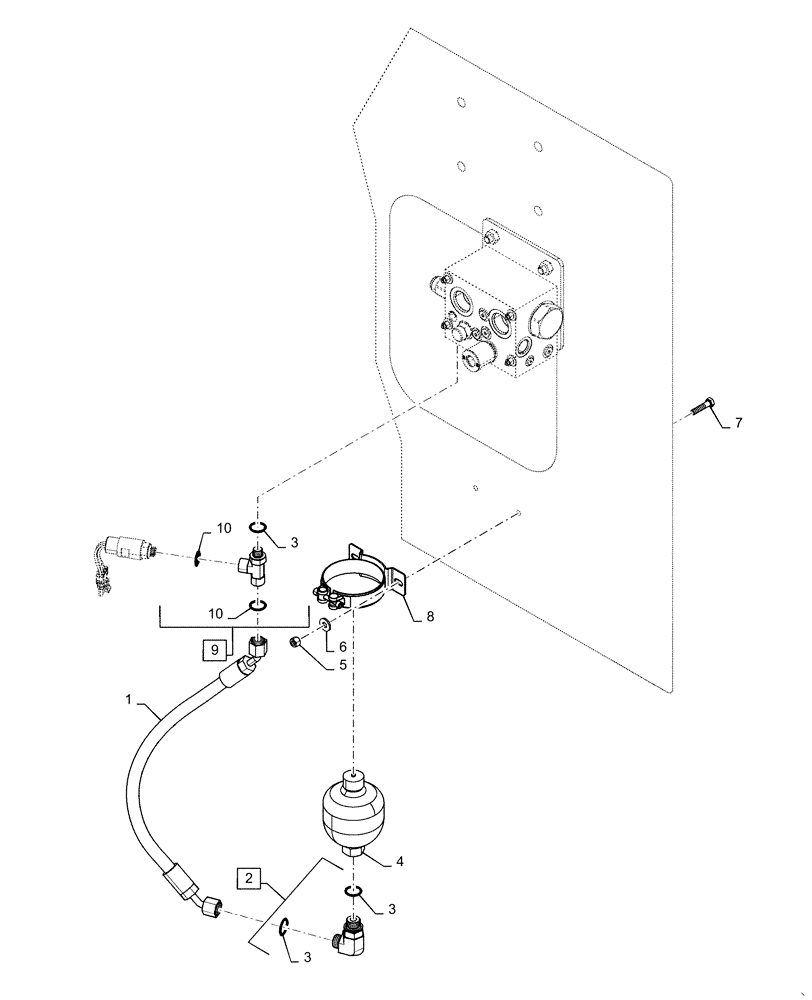

Запчасти Case 621F (41.910.AD) - AUXILIARY STEERING ACCUMULATOR (41) - STEERING

1

87725947

HOSE

Accumulator

1шт.

2

87725875

FITTING

Incl 3

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

4

87746283

ACCUMULATOR

Aux Steering

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

7

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

8

87750434

CLAMP

Accumulator

1шт.

9

87725860

FITTING

Incl 3, 10

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
