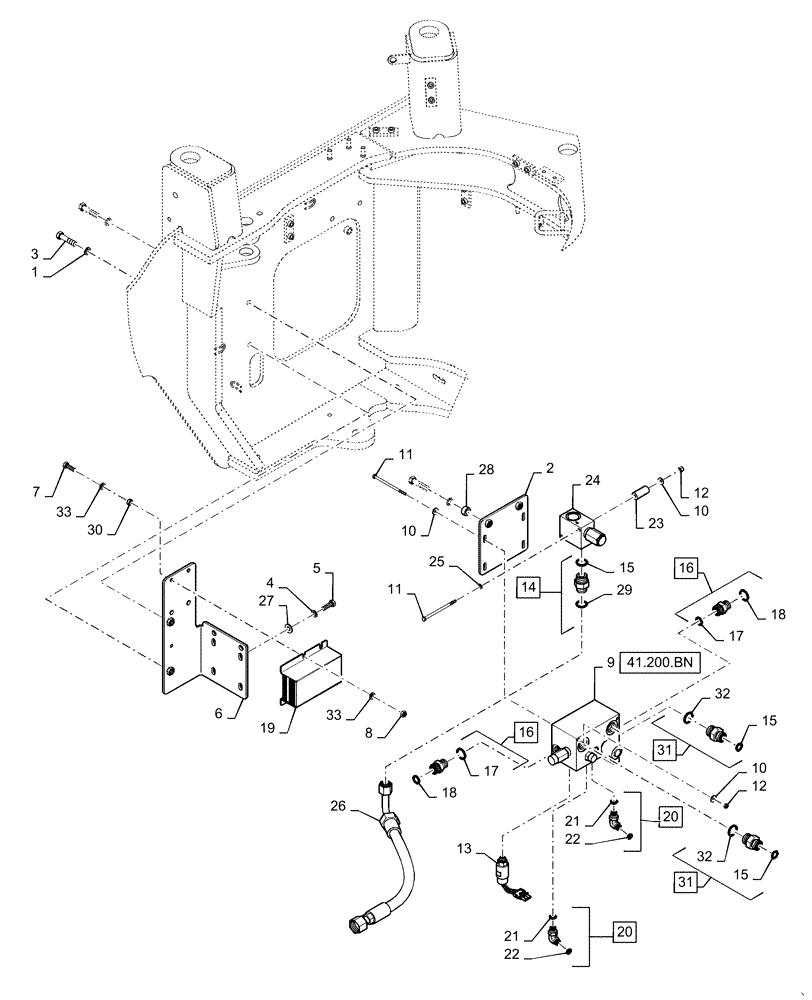

Запчасти Case 621F (41.910.AC) - AUXILIARY STEERING MANIFOLD VALVE INSTALLATION (41) - STEERING
№
Артикул
Название
Примечание
Количество
1
895-18012
WASHER,13.5mm ID x 20mm OD x 2mm Thk
4шт.
2
87653913
BRACKET
Auxiliary Steering Valve
1шт.
3
827-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9
4шт.
4
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
4шт.
5
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
4шт.
6
84393503
BRACKET, SUPPORTING
1шт.
7
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
4шт.
8
832-10408
NUT,M8 x 1.25, Cl 8.8
4шт.
9
47423289
MANIFOLD
Auxiliary Steering
1шт.
10
895-25006
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
10шт.
11
814-6110
BOLT,Hex, M6 x 1 x 110mm, Cl 8.8
6шт.
13
398888A1
PRESSURE SWITCH
Aux Steering
1шт.
14
86597760
HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB
Incl 15, 29
1шт.
16
700-103
HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl 17 - 18
2шт.
17
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
18
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
2шт.
19
8603171
MODULE
Secondary Steering
1шт.
20
700-378
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl 21 - 22
2шт.
21
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
2шт.
22
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
2шт.
23
8500692
SPACER
2шт.
24
87427823
VALVE PRESSURE RELIE
Aux Steering
1шт.
25
896-11006
WASHER,6.6mm ID x 12.5mm OD x 2mm Thk
2шт.
26
87653923
HOSE
Relief to Filter
1шт.
27
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
8шт.
28
D44696
BUSHING
Pipe
2шт.
29
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
30
87302487
SPACER,13.8mm ID x 21.3mm OD x 10.3mm L
2шт.
31
87035471
HYD CONNECTOR,1"-14 ORFS x M33 x 1.5 ORB
Incl 15, 32
2шт.
32
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
2шт.
32
895-18012
WASHER,13.5mm ID x 20mm OD x 2mm Thk
4шт.
33
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
8шт.
Выбрано товаров: 34
