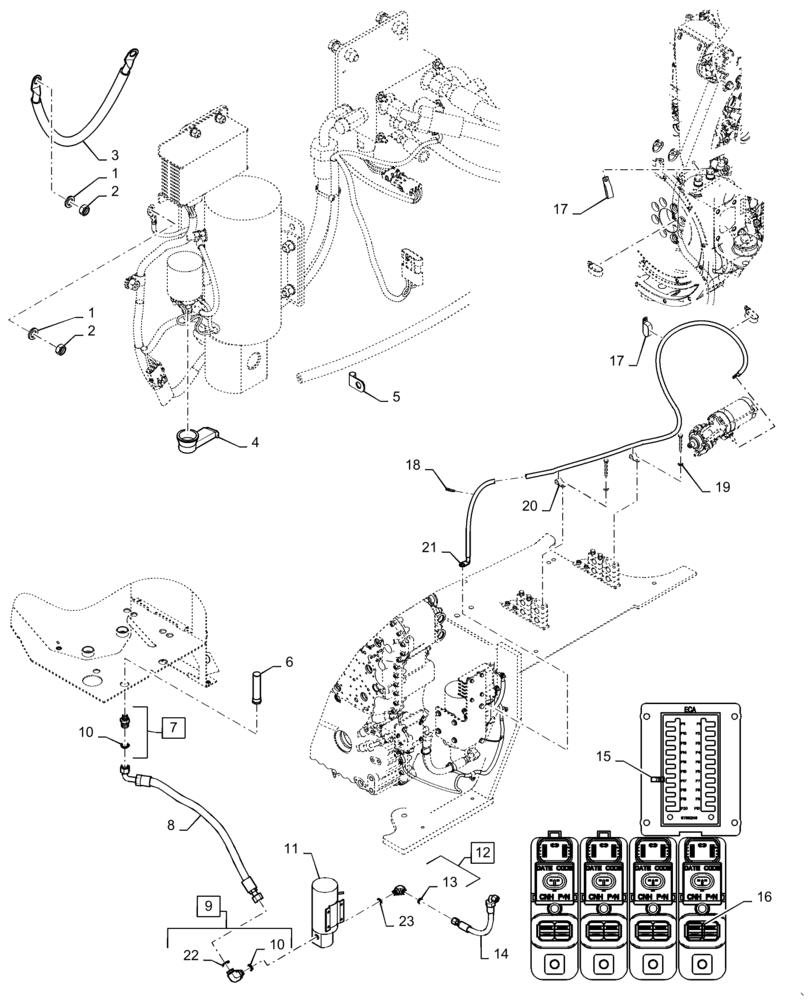

Запчасти Case 621F (41.910.AB) - AUXILIARY STEERING MOTOR AND FUSES (41) - STEERING

1

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

2

253347A1

NUT,Hex, M10 x 1.5

2шт.

3

L129707

NEG BATTERY CABLE

400mm Long

1шт.

4

L126713

BOOT

Electrical

1шт.

5

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

6

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

7

87433494

HYD CONNECTOR

Incl 10

1шт.

8

87653928

HOSE

Aux Suction

1шт.

9

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 10, 22

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

11

84419597

MOTOR-PUMP

Aux Steering

1шт.

12

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 13, 23

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

87653914

HOSE

Aux Pressure

1шт.

15

121411A1

FUSE,7.5A, Mini, Brown

1шт.

16

87327335

FUSE,20 Amp

32 Volt 20 Amp

1шт.

17

9603626

CLAMP

Insulated

2шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

20

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

Insulated

2шт.

21

87600841

CABLE

Aux Steering

1шт.

22

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

23

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
