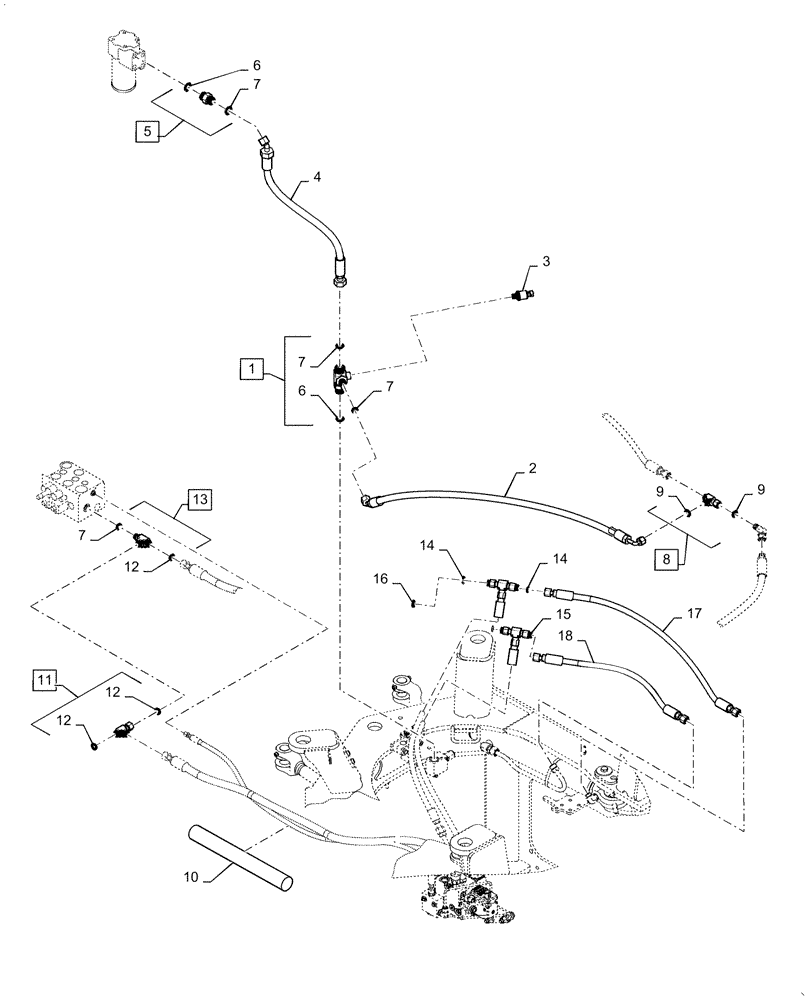

Запчасти Case 621F (41.200.BY[02]) - STANDARD STEERING WITH JOYSTICK, HYDRAULIC LINES (41) - STEERING

1

84215653

TEE

Incl 6 - 7

1шт.

2

84215436

HOSE

Bleeding To Tank

1шт.

3

87363483

SENDER UNIT

Pressure

1шт.

4

84216468

HOSE

Steering Return

1шт.

5

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 6 - 7

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 9

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

87559559

HOSE PROTECTION

Sleeve

1шт.

11

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 12

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

13

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 7, 12

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

15

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

16

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

17

87492561

HOSE ASSY.

Steering Cylinder

1шт.

18

87492558

HOSE ASSY.

RH Side Rod

1шт.
