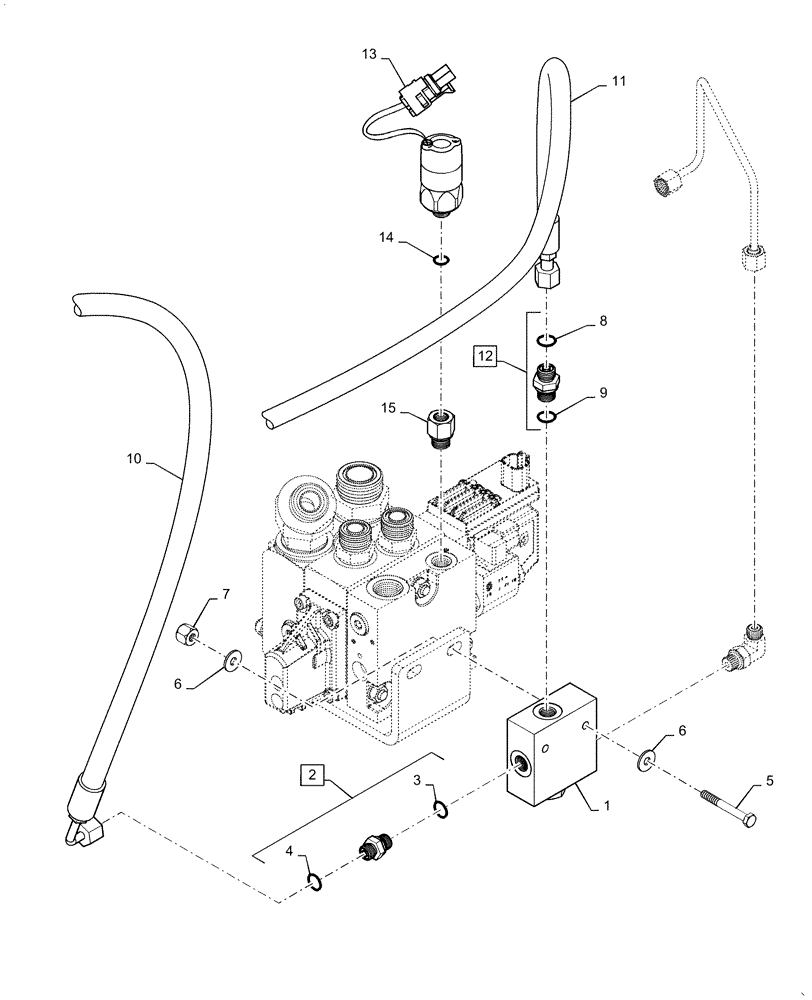

Запчасти Case 621F (41.200.BY[01]) - STANDARD STEERING WITH JOYSTICK, PVFC VALVE INSTALLATION (41) - STEERING

1

87719987

VALVE

PVFC

1шт.

2

87661868

HYD CONNECTOR

Incl 3 - 4

1шт.

3

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

10

87756191

HOSE

Steering LS

1шт.

11

84136834

HOSE ASSY.

To Priority Valve

1шт.

12

84172268

HYD CONNECTOR

Incl 8 - 9

1шт.

13

84175670

PRESSURE SWITCH

Pilot

1шт.

14

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

1шт.

15

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer, M14 X 1.5 ORB to M12 X 1.5 ORB

1шт.
