(39.140.AM) - COUNTERWEIGHT INSTALLATION

Запчасти Case 621F (39.140.AM) - COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING

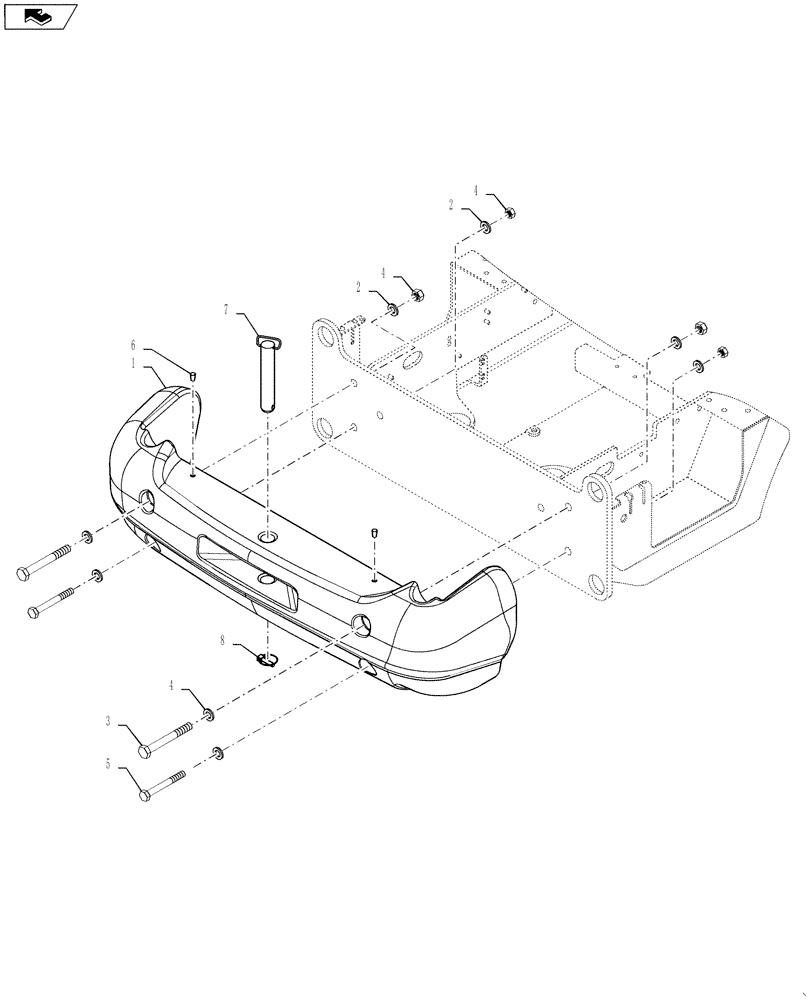

Схема запчастей Case 621F - (39.140.AM) - COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING
2
6
2
4
8
5
4
7
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87577182

COUNTERWEIGHT

499 kg (1100 lb)

1шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

3

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

2шт.

4

829-1424

NUT,M24, Cl 10

4шт.

5

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

2шт.

6

87308200

PLASTIC PLUG

Counterweight

2шт.

7

87516266

PIN,44.45mm OD

Hitch/Retrieval; For Standard and Heavy-Duty Counterweight

1шт.

8

19-1041

LOCK PIN,7/16" x 2"

1шт.
