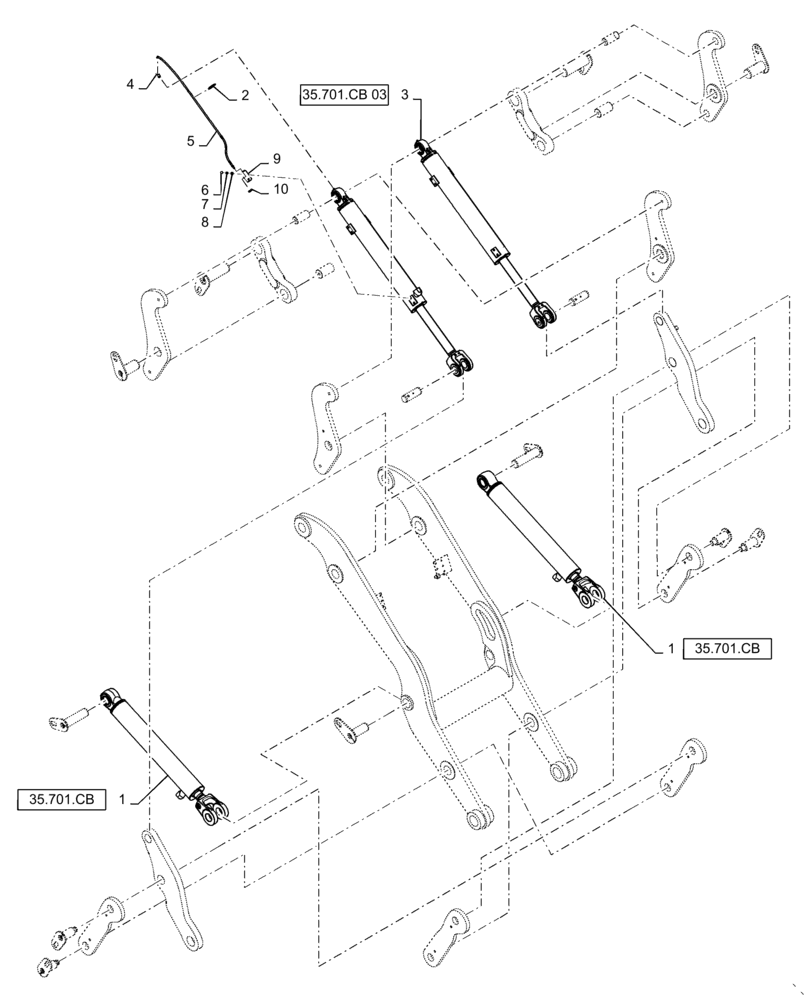

Запчасти Case 621F (39.100.AY[05]) - LIFT ARM INSTALLATION, XT/TC (39) - FRAMES AND BALLASTING

1

87577650

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

2шт.

87577650R

REMAN-HYD CYLINDER

621F - TIER 4 (NA) (1/12-)

2шт.

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

3

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

2шт.

87442555R

REMAN-HYD CYLINDER

621F WHEEL LOADER - TIER 4 (NA) (1/12-)

2шт.

87442555C

CORE-HYD CYLINDER

Return Number

1шт.

4

328082A1

ELBOW

90° Street

2шт.

5

87444057

FLEXIBLE HOSE

Grease Line, 1185mm Lg

2шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

87441374

BRACKET

Grease Hose

1шт.

10

76085536

NUT,1/8-27 NPSM

2шт.
