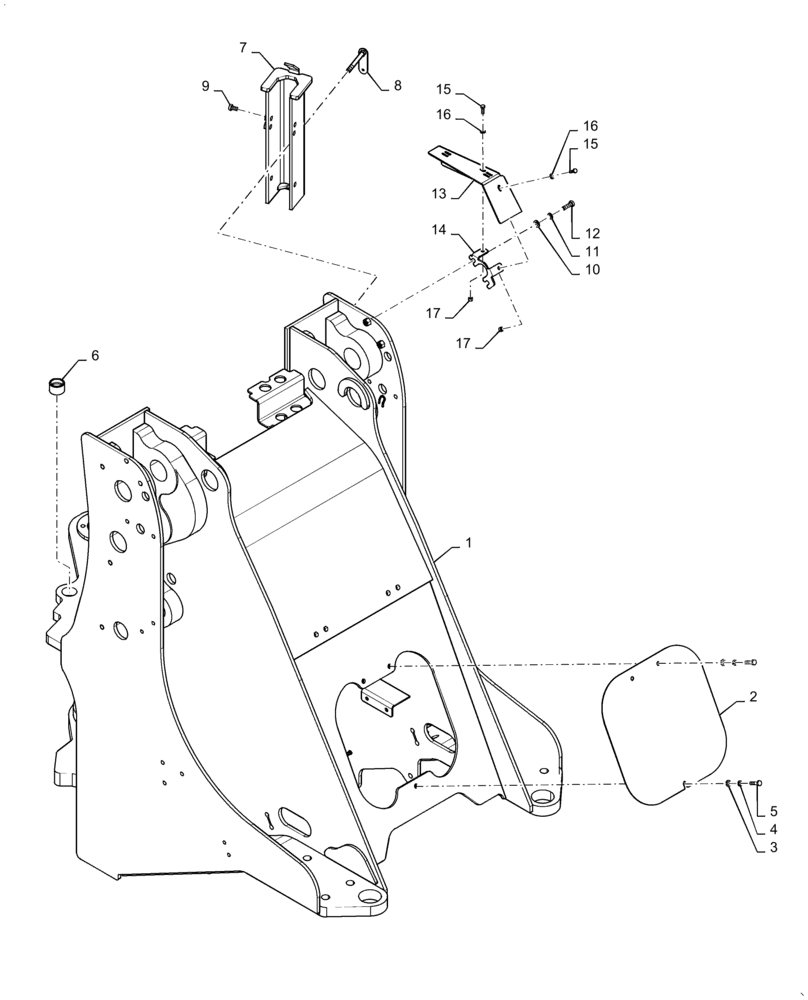

Запчасти Case 621F (39.100.AY[03]) - FRONT FRAME INSTALLATION, XT (39) - FRAMES AND BALLASTING

1

47526158

FRAME

Front

1шт.

2

47404545

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

Steering

2шт.

7

47430519

CHANNEL

Linkage Support

1шт.

8

406390A1

HANDLE

With Linkage Support

1шт.

9

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

47411063

COVER

Proximity Switch Case Power

1шт.

14

47411062

MOUNTING PLATE

Proximity Switch

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

16

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
