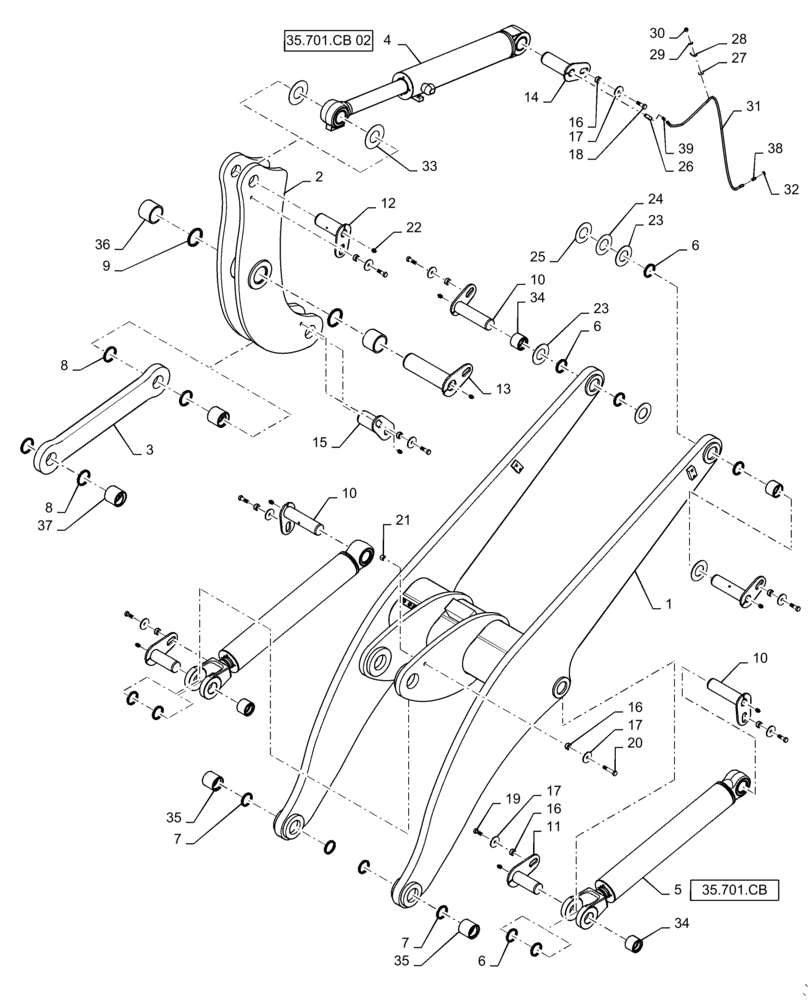

Запчасти Case 621F (39.100.AY[02]) - LIFT ARM INSTALLATION, XR/LR (39) - FRAMES AND BALLASTING

1

87475249

LIFT ARM

Loader Lift, Incl 34 - 35

1шт.

2

87330150

BELLCRANK

Bellcrank, Incl 36

1шт.

3

87395399

LINK

Dump, Incl 37

1шт.

4

87366696

CYLINDER ASSY.,Double Acting, 76.2mm Rod, 619.7mm Stroke

127 ID x 620 mm strk, Bucket Tilt

1шт.

4

87366696R

REMAN-HYD CYLINDER

Bucket Tilt

1шт.

4

87366696C

CORE-HYD CYLINDER

Return Number

1шт.

5

87577650

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

Lift, 120.65 mm ID x 787.6 mm strk

2шт.

5

87577650R

REMAN-HYD CYLINDER

Lift

2шт.

5

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5 ID

8шт.

7

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8 ID

4шт.

8

D95148

WIPER SEAL

76.2 ID

4шт.

9

S92653

WIPER

88.9 ID

2шт.

10

84315936

PIN

Lift Arm Pivot, Head End, Tan

4шт.

11

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Pivot, Rod End, Tan

2шт.

12

87397326

PIN

Dump Link Pivot, Tan

1шт.

13

87397343

PIN ASSY.,88.9mm OD x 332.5mm L

Bellcrank Pivot, Tan

1шт.

14

87397344

PIN ASSY.,69.85mm OD x 192mm L

Tilt Cylinder Pivot, Tan

1шт.

15

87397345

PIN ASSY.

Dump Link Pivot, Tan

1шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

10шт.

17

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

20

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

21

832-10416

NUT,M16 x 2, Cl 8

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

23

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

64.9 ID, 3.5 THK, Hardened

1шт.

24

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

64.9 ID, 1.6 THK, Hardened

1шт.

25

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

64.9 ID, 2.5 THK, Hardened

1шт.

26

328082A1

ELBOW

1/8 PT

1шт.

27

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

28

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

31

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in), Incl 38 - 39

1шт.

32

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

33

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 ID, 2.5 THK

2шт.

34

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift Arm

4шт.

35

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Dump Link

2шт.

36

371883A1

BUSHING

Bushing

2шт.

37

87613430

BUSHING,76.52mm ID x 89.99mm OD x 79mm L

Dump Link

2шт.

38

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
