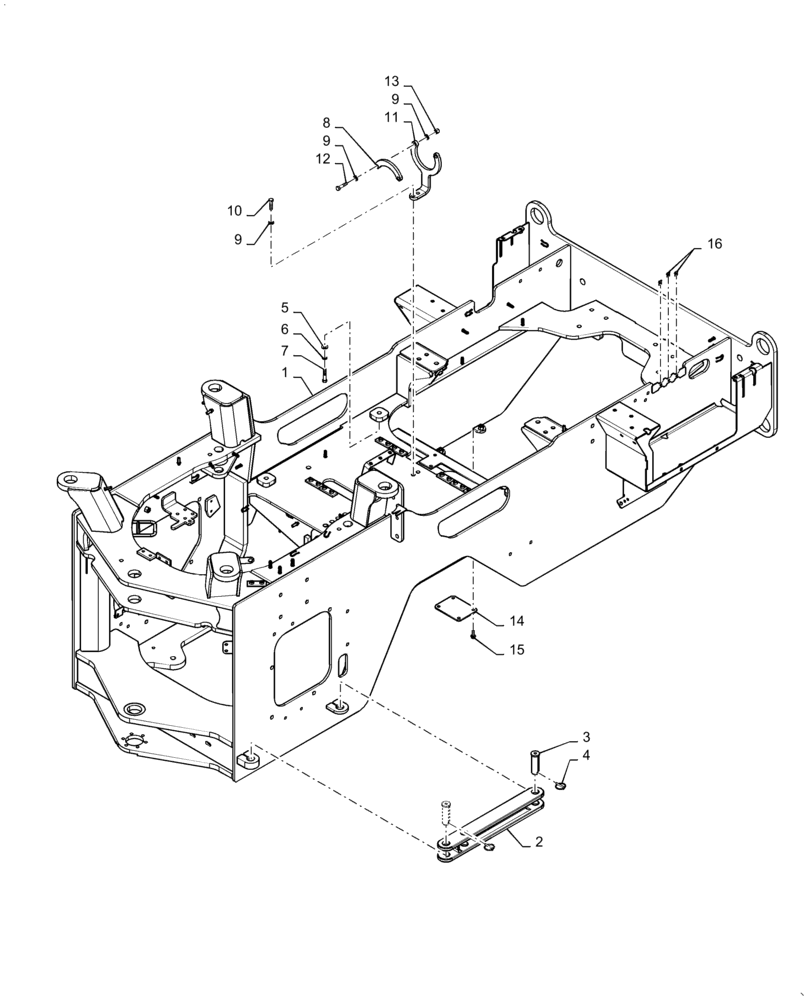

Запчасти Case 621F (39.100.AS) - REAR FRAME INSTALLATION (39) - FRAMES AND BALLASTING

1

47638126

FRAME

Rear

1шт.

2

412067A1

LOCKING BAR

Articulation

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Articulation

2шт.

4

A30338

PIN

Locking Bar

2шт.

5

895-15012

WASHER,M12 x 28 x 2.5

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

8

87559571

GUARD

Drive Shaft

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

10

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

11

87333866

GUARD

Druve Shaft Top

1шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

47397618

PLATE

Cover Tank Drain

1шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

16

833-40306

SPRING NUT,M6, U

3шт.
