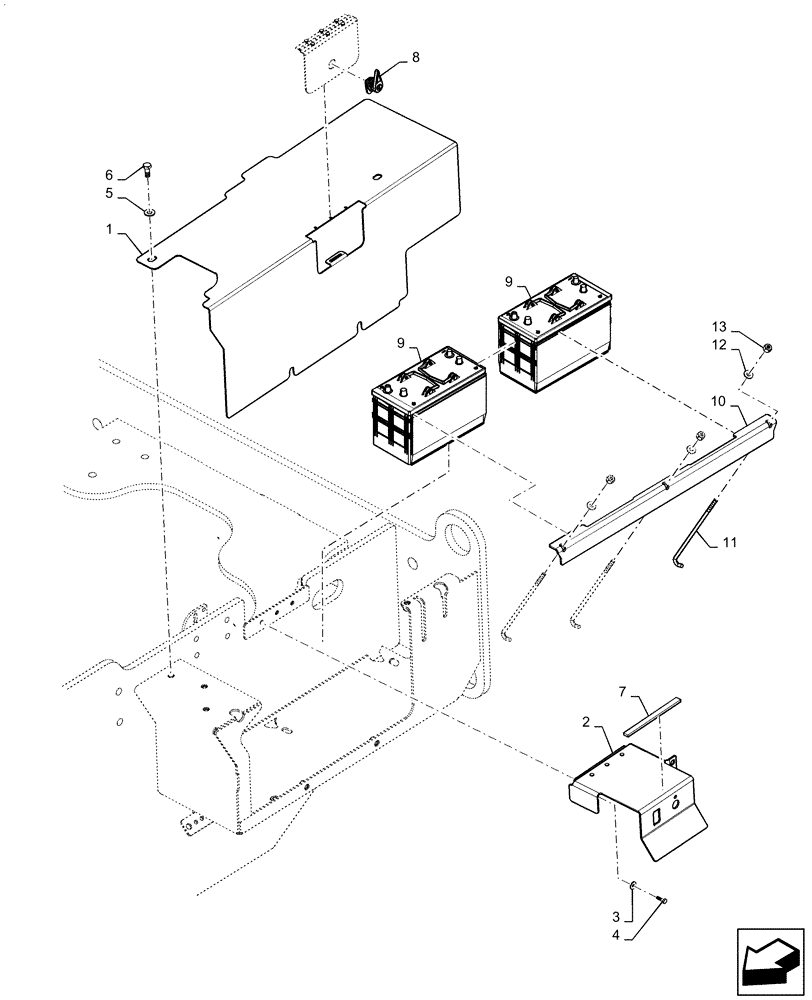

Запчасти Case 621F (39.100.AH[01]) - BATTERY CASE COVER (39) - FRAMES AND BALLASTING

1

47443352

COVER

Battery, Left Hand

1шт.

2

47442953

BRACKET

Hood Switch

1шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

7

87591165

SEAL

Switch

1шт.

8

8602791

LOCK

Battery Cover

1шт.

9

BMF31EW

WET BATTERY

US Battery

2шт.

9

CCMF31GW

WET BATTERY

Canadian Battery

2шт.

10

84490522

SECURING STRAP

Battery

1шт.

11

365357A1

ROD

Battery Hold Down, Plated

3шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.
