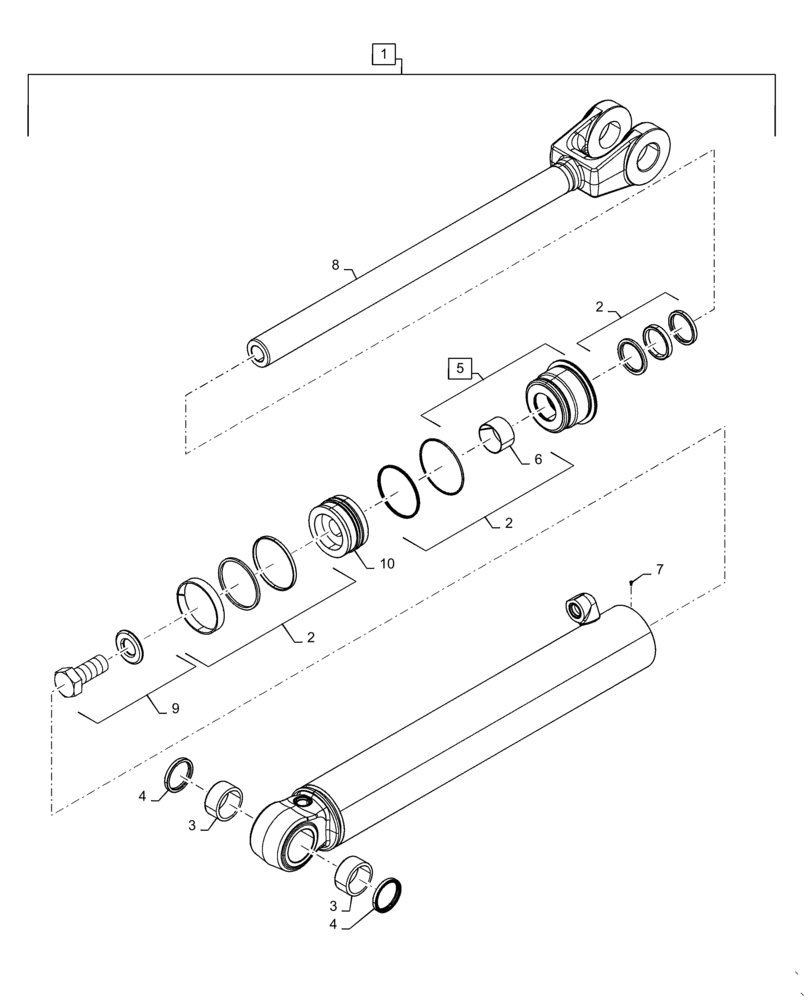

Запчасти Case 621F (35.701.CB) - LIFT CYLINDER ASSEMBLY, Z-BAR, XR & XT (35) - HYDRAULIC SYSTEMS

1

87577650

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

120.65 mm ID x 787.6 mm strk; Incl 2 - 10

1шт.

1

87577650R

REMAN-HYD CYLINDER

1шт.

1

87577650C

CORE-HYD CYLINDER

Return Number

1шт.

2

87598751

SEAL KIT

Lift Cylinder Service

1шт.

3

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod

2шт.

5

84362464

PISTON ROD/GLAND

Gland Assembly, Incl 6

1шт.

6

336041A1

BUSHING

Bearing

1шт.

7

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

8

87318062

PISTON ROD,63.5mm OD x 1085.7mm L

63.5 Diameter

1шт.

9

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Assy, Incl Washer

1шт.

10

87586631

PISTON ASSY

Piston Assy

1шт.
