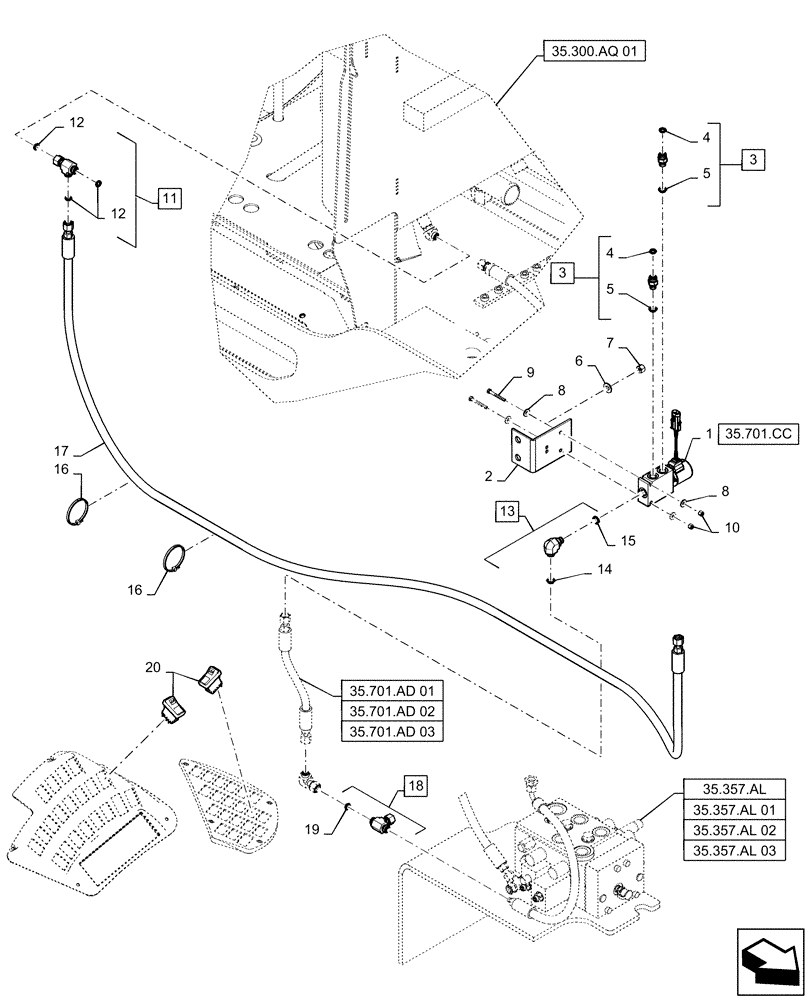

Запчасти Case 621F (35.701.AD) - COUPLER LOCKING INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84139102

SOLENOID VALVE

1шт.

2

87404018

BRACKET

Coupler Solenoid

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 4, 5

3шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 12

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 14, 15

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

Strap, 15"

2шт.

17

87581937

HYDRAULIC HOSE,9.52 mm ID x 2558.00 mm, SAE 100R1

Coupler Tank

1шт.

18

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

364444A2

SWITCH

Pin Engage

1шт.
