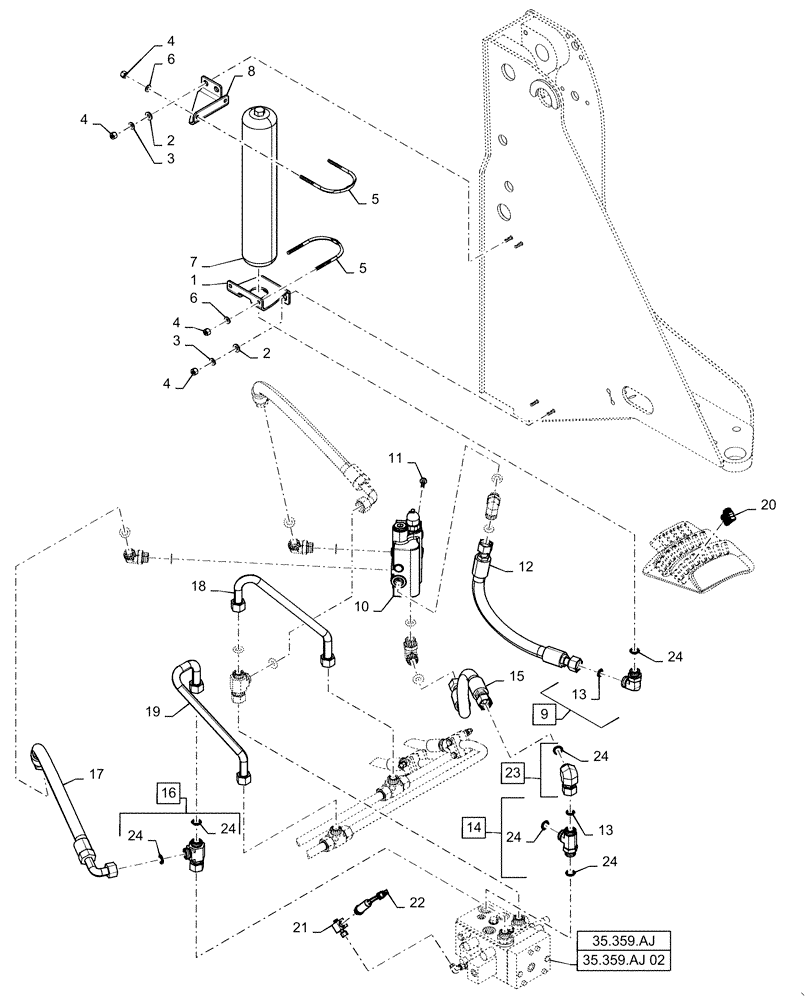

Запчасти Case 621F (35.701.AA) - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

87393646

BRACKET

Ride Control Accumulator

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

87492028

U-BOLT

Coined

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

87393434

ACCUMULATOR,3.8L

Ride Control

1шт.

8

87403347

BRACKET

Ride Control Accumulator, Top

1шт.

9

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl (1) Ref. 24 and (1) Ref. 13

5шт.

10

84494281

HYDRAULIC VALVE

Ride Control, See 35.701.AA (01) For Components

1шт.

11

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

12

87452278

HOSE ASSY.

Ride Control Accumulator, 588mm Lg

1шт.

13

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

6шт.

14

700-407

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl (2) Ref. 24 and (1) Ref. 13

1шт.

15

47579344

HOSE

Ride Control Tank, 680mm Lg

1шт.

16

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl. (2) Ref. 24

2шт.

17

87452280

HOSE ASSY.

Ride Control Head or Rod, 873mm Lg

2шт.

18

87452287

TUBE,25.4 mm OD x 298.1, 243.8 mm L

Ride Control, Rod

1шт.

19

87389423

HYD TUBE,19.4 mm ID x 25.40 mm OD x 253, 105 mm L

Ride Control, Head

1шт.

20

87350055

SWITCH

Ride Control, Cab Dash

1шт.

21

397547A1

FITTING

Pressure Switch XT Models Only

1шт.

22

446183A1

PRESSURE SWITCH

Switch Rollback XT Models Only

1шт.

23

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl (1) Ref. 24

2шт.

24

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

12шт.
