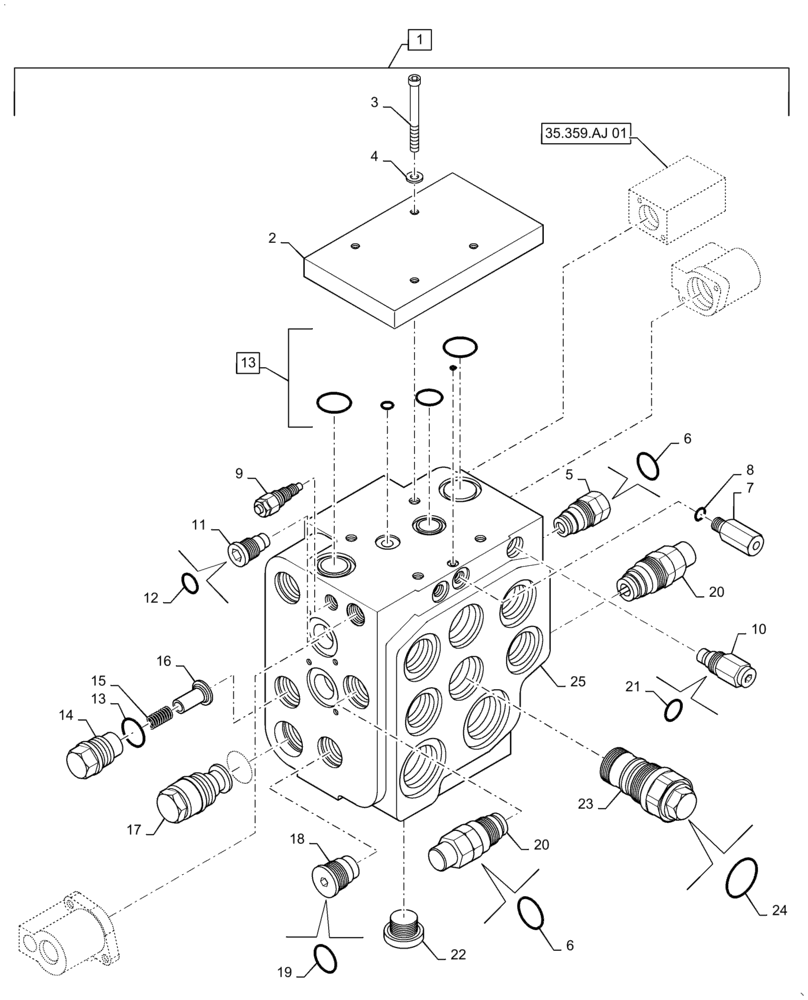

Запчасти Case 621F (35.359.AJ) - VALVE ASSEMBLY, LOADER CONTROL, 2 SPOOL, Z-BAR & XR (35) - HYDRAULIC SYSTEMS

1

47740547

VALVE

Hydraulic Valve, Two Spool, Incl 1 - 26 and Fig 35.359.AJ(01)

1шт.

2

47707275

PLATE

Plate, End

1шт.

3

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

5

87613467

SEAL KIT

Anti-Cavitation for Valve 725

1шт.

5

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

6

8602905

SEAL KIT

Anti-Cavitation, For 5, 20

2шт.

7

8602899

HYDRAULIC VALVE

Pilot, Pressure Reducing

1шт.

8

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

1шт.

9

8602925

VALVE PRESSURE RELIE

1шт.

10

8602913

HYDRAULIC VALVE

Flow Limiting Valve

1шт.

11

87613469

HYDRAULIC VALVE

Flow Limiting Valve

1шт.

12

8602916

SEAL KIT

Flow Limiting Valve, For 11

1шт.

13

8602927

SEAL KIT

For Main Housing

1шт.

14

8602919

SCREW,Lock, M28 x 1 x 49mm

2шт.

15

NSS

NOT SOLD SEPARAT

Compression Spring, Incl 1

2шт.

16

NSS

NOT SOLD SEPARAT

Cone, Incl 1

2шт.

17

8602912

HYDRAULIC VALVE

Anti-Cavitation Check

1шт.

18

8602902

LOCK SCREW

Hydraulic Plug

1шт.

19

8602903

SEAL KIT

Lock Screw, For 18

1шт.

20

8602906

HYDRAULIC VALVE

Combined Relief and Anti-Cavitation Valve

2шт.

21

8604592

SEAL KIT

Flow Limiting Valve, For 10

1шт.

22

8602893

SCREW,M33 x 2mm

Hydraulic Plug

2шт.

23

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation Valve

2шт.

24

8602901

SEAL KIT

Pilot Relief and Anti-Cavitation, For 23

1шт.

25

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

26

8602898

LOCK SCREW

Hydraulic Plug

2шт.
