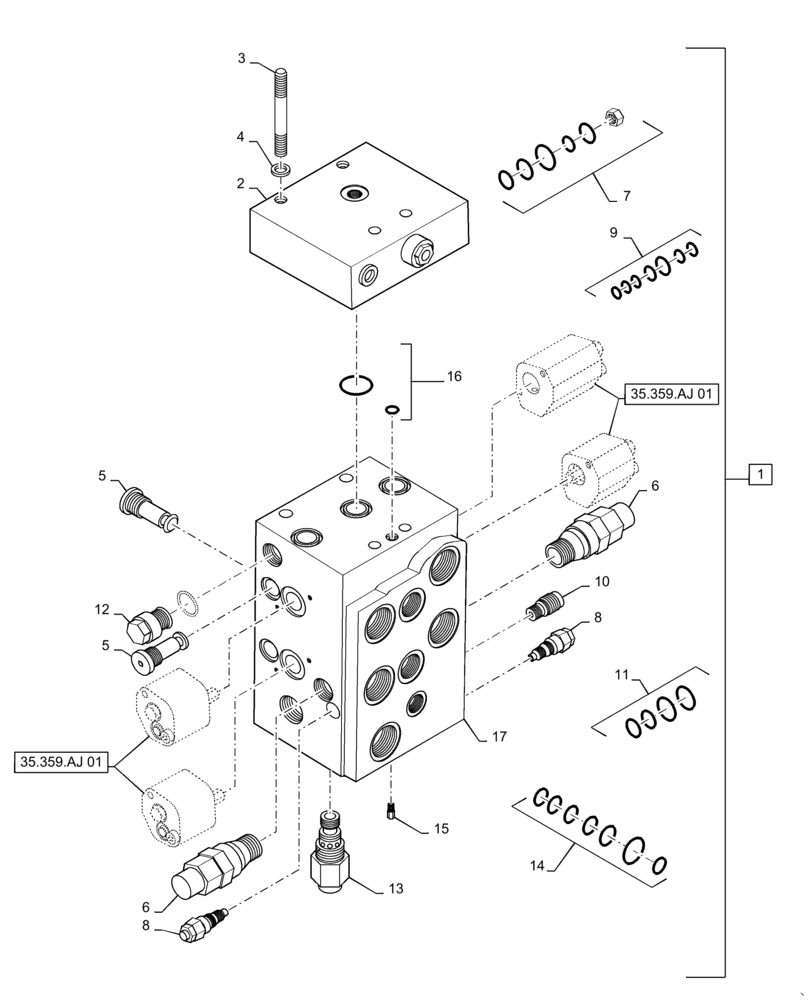

Запчасти Case 621F (35.359.AJ) - VALVE ASSEMBLY LOADER CONTROL 2 SPOOL, Z-BAR AND XR (35) - HYDRAULIC SYSTEMS

1

87307982

HYDRAULIC VALVE

Two Spool, Incl 2-17 and Fig. 35.359.AJ(01), Incl 1 - 23

1шт.

2

87311889

PLATE

Valve

1шт.

3

962-8055

SCREW,Hex Skt, M8 x 55mm, Cl 10.9

Two Spool Valve

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

8604567

VALVE, CHECK

Loader Control

4шт.

6

8604568

HYDRAULIC VALVE

Anticavitation, For Seal Kit Order 7

2шт.

7

8604588

KIT

For 6, Available in Kit Only

1шт.

8

8602925

VALVE PRESSURE RELIE

For Seal Kit Order 9

2шт.

9

8604590

SEAL KIT

For 8, Available in Kit Only

1шт.

10

8602915

HYDRAULIC VALVE

Flow Limiting, For Seal Kit Order 11

1шт.

11

8602916

SEAL KIT

For 10, Available in Kit Only

1шт.

12

87311965

INSERT

Pilot Pressure

1шт.

13

8602913

HYDRAULIC VALVE

Flow Limiting, For Seal Kit Order 14

1шт.

14

8604592

SEAL KIT

For 13, Available in Kit Only

1шт.

15

87362307

CHECK VALVE

Loader Control

1шт.

16

8604575

SEAL KIT

For Main Housing, Available in Kit Only

1шт.

17

NSS

NOT SOLD SEPARAT

Valve Body

1шт.
