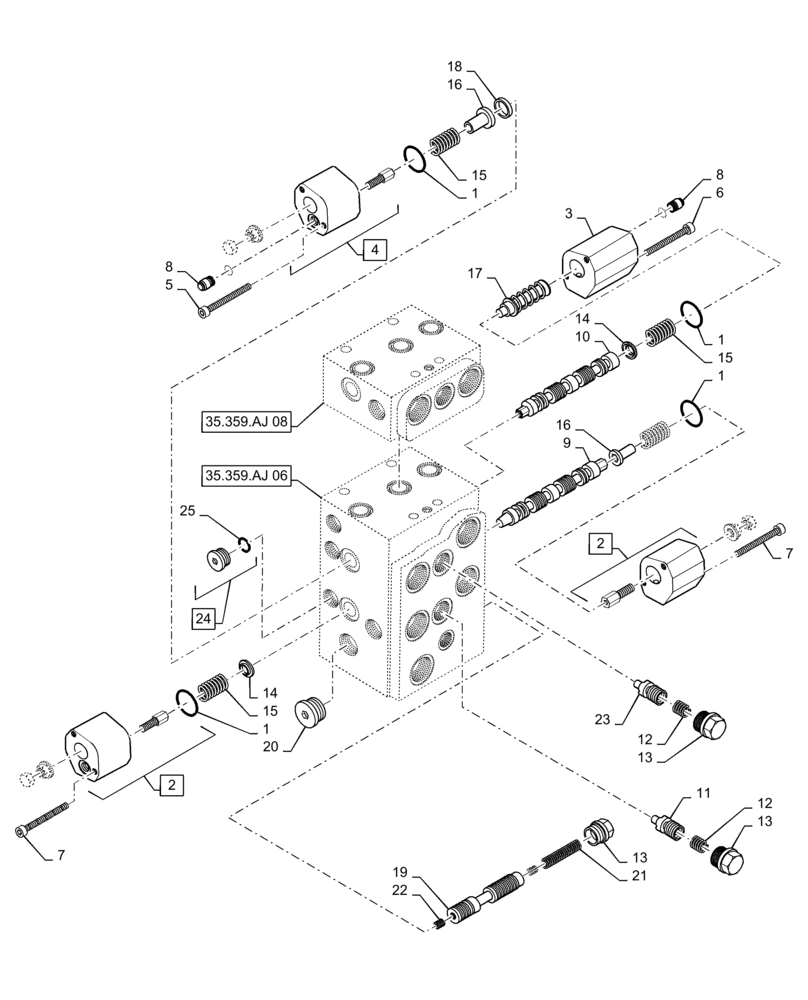

Запчасти Case 621F (35.359.AJ[07]) - VALVE ASSEMBLY, PISTON AXIS, 3 SPOOL XT/TC (35) - HYDRAULIC SYSTEMS

1

8604575

SEAL KIT

For Main Housing

1шт.

2

8604576

COVER

M6 Valve

2шт.

3

87311972

COVER

M6 Valve

1шт.

4

8605577

COVER

M6 Valve

1шт.

5

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

6

87311974

HEX SOC SCREW,M5 x 85mm, Cl 10.9

2шт.

7

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

8

8604578

CHECK VALVE

Throttle

2шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in Fig. 35.359.AJ 06 Ref 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, Incl in Fig. 35.359.AJ 06 Ref 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston, Incl in Fig. 35.359.AJ 06 Ref 1

1шт.

12

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in Fig. 35.359.AJ 06 Ref 1

2шт.

13

8604581

SCREW,Lock, M6

3шт.

14

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in Fig. 35.359.AJ 02 Ref 1

2шт.

15

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in Fig. 35.359.AJ 02 Ref 1

4шт.

16

NSS

NOT SOLD SEPARAT

Retainer, Incl in Fig. 35.359.AJ 02 Ref 1

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in Fig. 35.359.AJ 02 Ref 1

1шт.

18

NSS

NOT SOLD SEPARAT

Ring, Incl in Fig. 35.359.AJ 02 Ref 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in Fig. 35.359.AJ 02 Ref 1

1шт.

20

87311988

PLUG

M22 x 1.5

1шт.

21

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in Fig. 35.359.AJ 02 Ref 1

1шт.

22

NSS

NOT SOLD SEPARAT

Jet, Incl in Fig. 35.359.AJ 02 Ref 1

2шт.

23

NSS

NOT SOLD SEPARAT

Spool, Incl in Fig. 35.359.AJ 02 Ref 1

1шт.

24

221578A1

PLUG,M18 x 1.5 ORB

Incl 25

1шт.

25

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
