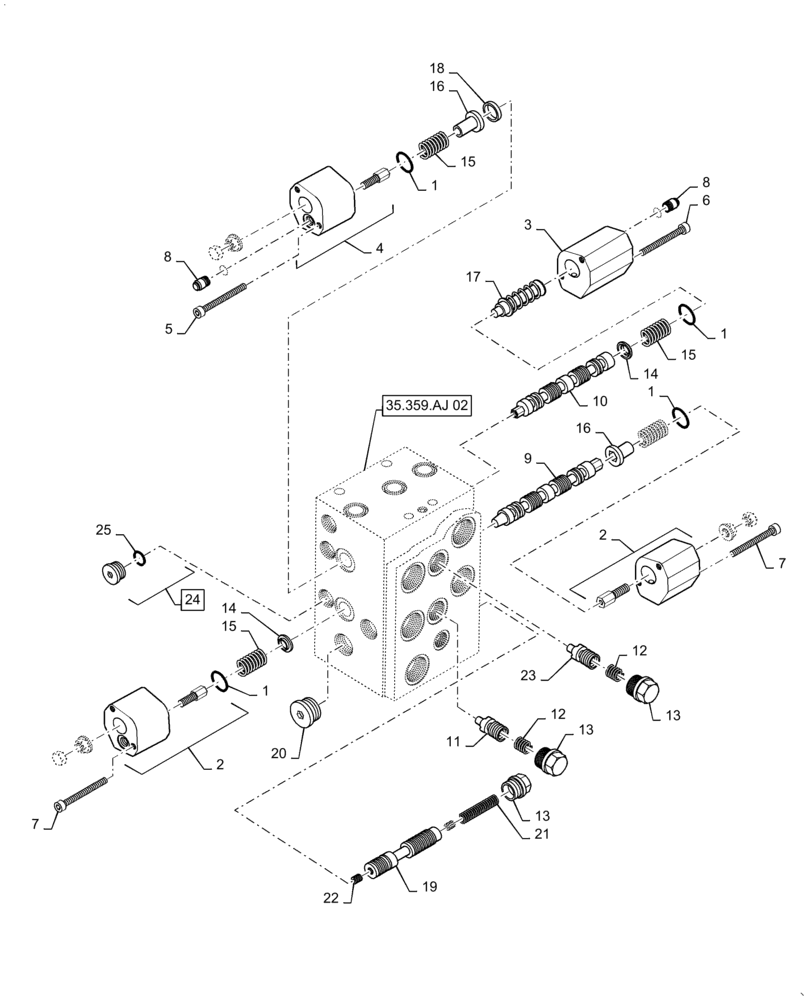

Запчасти Case 621F (35.359.AJ[03]) - VALVE ASSEMBLY, PISTON AXIS, 2 SPOOL XT/TC (35) - HYDRAULIC SYSTEMS

1

8604575

SEAL KIT

For Main Housing

1шт.

2

8604576

COVER

M6 Valve

2шт.

3

87311972

COVER

M6 Valve

1шт.

4

8605577

COVER

M6 Valve

1шт.

5

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

6

87311974

HEX SOC SCREW,M5 x 85mm, Cl 10.9

2шт.

7

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

8

8604578

CHECK VALVE

Throttle

2шт.

9

87692471

SPOOL

1шт.

10

87692470

SPOOL

1шт.

11

8604579

VALVE

Piston

1шт.

12

8604580

SPRING

Compression Spring

2шт.

13

8604581

SCREW,Lock, M6

3шт.

14

8604582

RETAINER

Spring Retainer

2шт.

15

8604583

SPRING

Compression Spring

4шт.

16

87311984

RETAINER

2шт.

17

87311985

SPRING

1шт.

18

87311986

RING

1шт.

19

8604584

PISTON

1шт.

20

87311988

PLUG

M22 x 1.5

1шт.

21

8604586

SPRING

Compression

1шт.

22

87311990

JET

2шт.

23

87311991

SPOOL

1шт.

24

221578A1

PLUG,M18 x 1.5 ORB

Incl 25

1шт.

25

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
