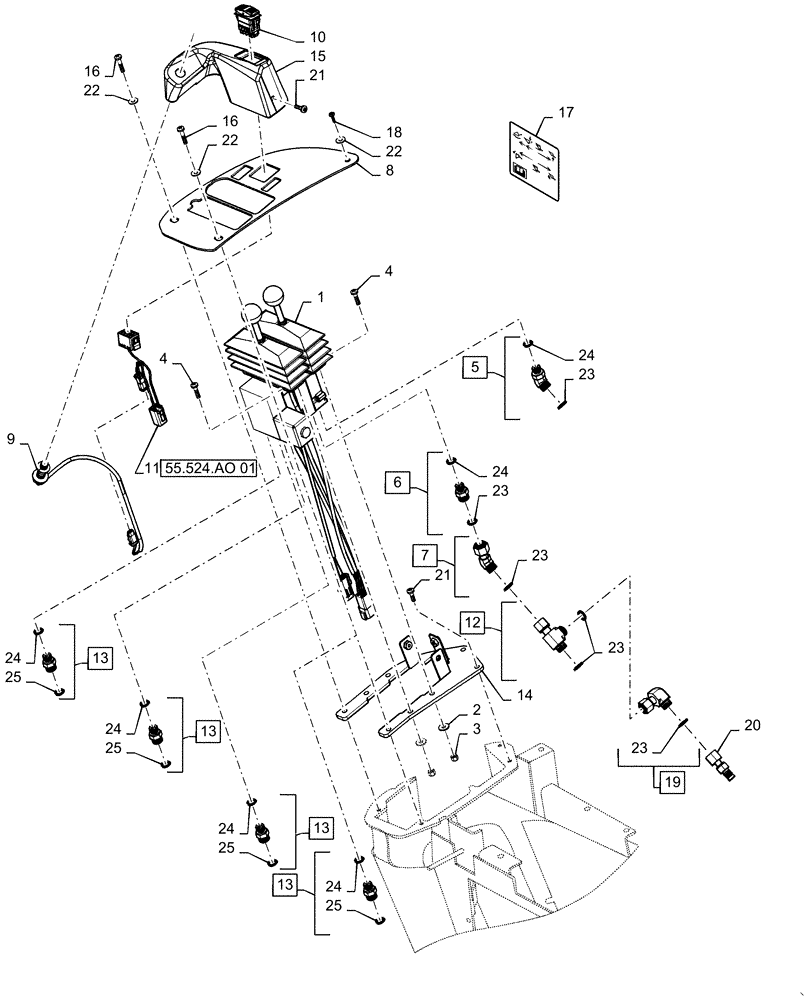

Запчасти Case 621F (35.359.AF) - 2 LEVER CONTROL INSTALLATION (35) - HYDRAULIC SYSTEMS

1

407868A2

VALVE, CONTROL

2 Lever

1шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

5

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 23, 24

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 23, 24

1шт.

7

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 23

1шт.

8

84314705

BEZEL

2 Lever

1шт.

9

402390A1

SWITCH

Downshift

1шт.

10

400833A2

SWITCH

F-N-R

1шт.

11

87324389

WIRE HARNESS

FNR Switch

1шт.

12

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 23

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 24, 25

4шт.

14

87534053

BRACKET

Single Axis Controller

1шт.

15

87523729

COVER

Tower, Switch

1шт.

16

84263396

SCREW,Phillips Drive, Pan HD, M6 x 30mm, Cl 4.8

2шт.

17

87536092

DECAL

2-Lever Control

1шт.

18

1270762C1

SELF-TAP SCREW

Pan Head, 3/4" Lg

1шт.

19

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 23

1шт.

20

190119A1

COUPLING

Diagnostic

1шт.

21

47372445

SCREW,Pozidrive, Pan HD, M6 x 20mm, Cl 5.8

3шт.

22

47368445

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

6.4mm ID x 16.3mm OD x 1mm Thk

5шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

6шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.
