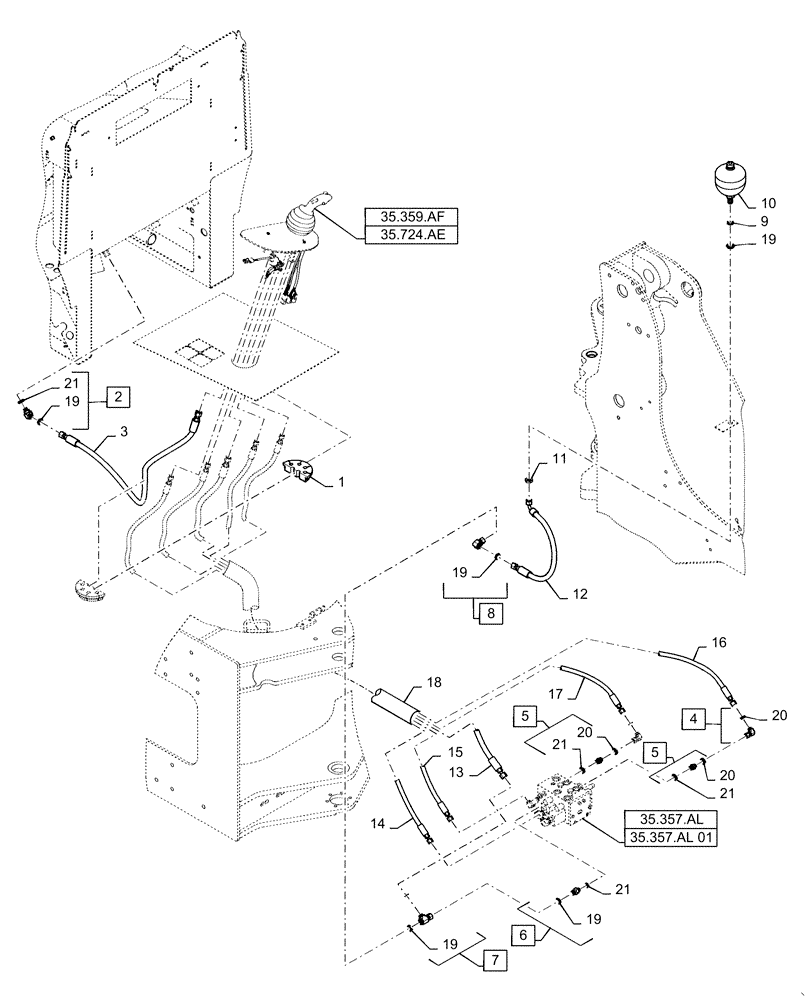

Запчасти Case 621F (35.357.AO) - 2 SPOOL LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

380912A1

GROMMET

Hose Mounting

2шт.

2

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 21

1шт.

3

392059A1

HOSE ASSY.

Pilot Tank, 1294mm Lg

1шт.

4

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 20

2шт.

5

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 20, 21

2шт.

6

391859A1

VALVE, CHECK

Incl 19, 21

1шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 19

1шт.

8

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 19

1шт.

9

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

10

8501047

ACCUMULATOR

Pilot Supply

1шт.

11

701-909

NUT,11/16" - 16

1шт.

12

87308338

HOSE ASSY.

Pilot Accumulator

1шт.

13

87651218

HOSE

Pilot Pressure, 2565mm Lg

1шт.

14

87651219

HOSE

Pilot Lift RH, 2742mm Lg

1шт.

15

87651220

HOSE

Pilot Tilt RH, 2657mm Lg

1шт.

16

87651221

HOSE

Pilot Lift LH, 2672mm Lg

1шт.

17

87651222

HOSE

Pilot Tilt LH, 2577mm Lg

1шт.

18

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

Sleeve

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.
