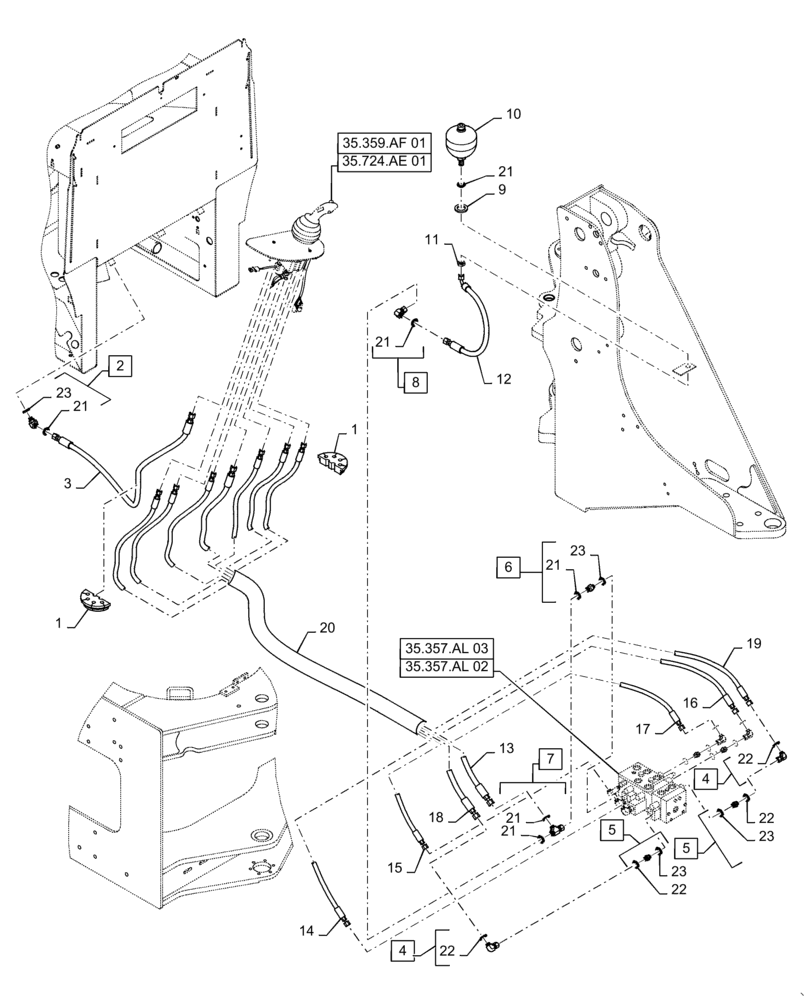

Запчасти Case 621F (35.357.AO[01]) - 3 SPOOL LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

380912A1

GROMMET

Hose Mounting

2шт.

2

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 21, 23

1шт.

3

392059A1

HOSE ASSY.

Pilot to Tank, 1294 mm (50 - 15/16 in)

1шт.

4

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 22

4шт.

5

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 22, 23

4шт.

6

391859A1

VALVE, CHECK

11/16"-16 ORFS x M14 x 1.5 ORB, Incl 21, 23

1шт.

7

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 21

1шт.

8

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 21

1шт.

9

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

10

8501047

ACCUMULATOR

Pilot Supply

1шт.

11

701-909

NUT,11/16" - 16

1шт.

12

87308338

HOSE ASSY.

Pilot Accumulator, 621 mm (24 - 7/16 in)

1шт.

13

87651218

HOSE

Pilot Pressure, 2565 mm (101 in)

1шт.

14

87651219

HOSE

Pilot Lift, RH, Yellow and Black Banding, 2742 mm (107 - 15/16 in)

1шт.

15

87651220

HOSE

Pilot Tilt, LH, Orange and Black Banding, 2657 mm (104 - 19/32 in)

1шт.

16

87651221

HOSE

Pilot Lift, LH, Red and Black Banding, 2672 mm (105 - 3/16 in)

1шт.

17

87651222

HOSE

Pilot Tilt, LH, Green and Black Banding, 2577 mm (101 - 29/64 in)

1шт.

18

87651223

HOSE

Pilot 3 Spool, RH, Red and White Banding, 2865 mm (112 - 3/4 in)

1шт.

19

87651224

HOSE

Pilot 3 Spool, LH, Yellow and White Banding, 2806 mm (110 - 1/2 in)

1шт.

20

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.

23

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.
