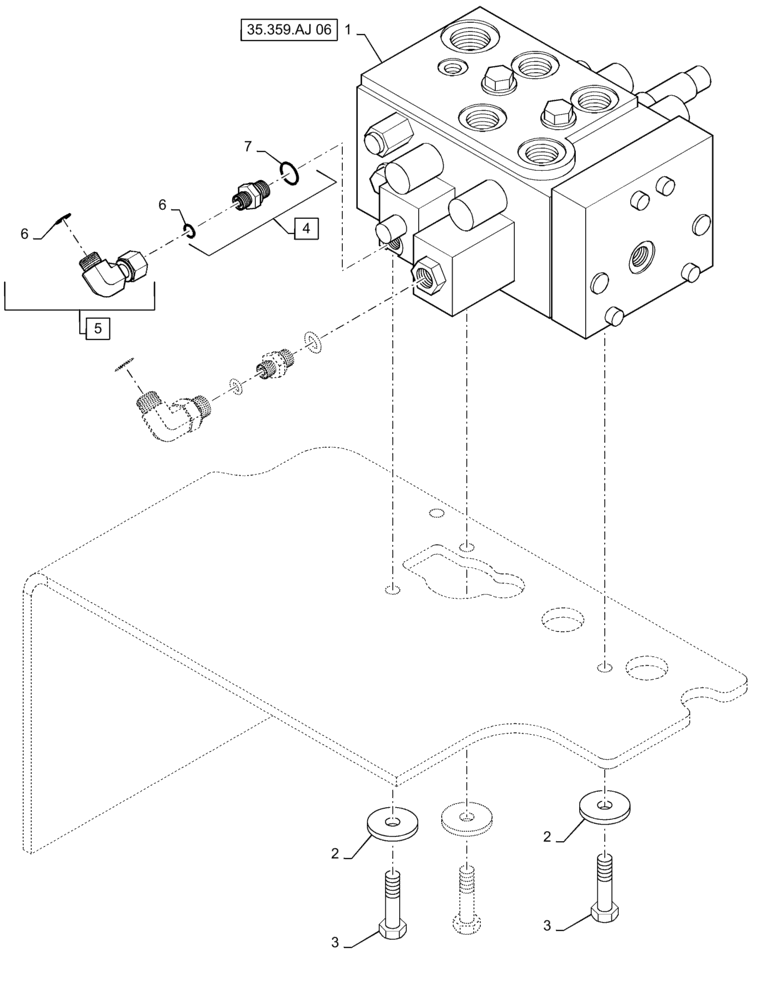

Запчасти Case 621F (35.357.AL[03]) - PILOT VALVE INSTALLATION, 3 LEVER, XT/TC (35) - HYDRAULIC SYSTEMS

1

87680516

HYDRAULIC VALVE

3 Spool

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 6, 7

2шт.

5

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 6

2шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
