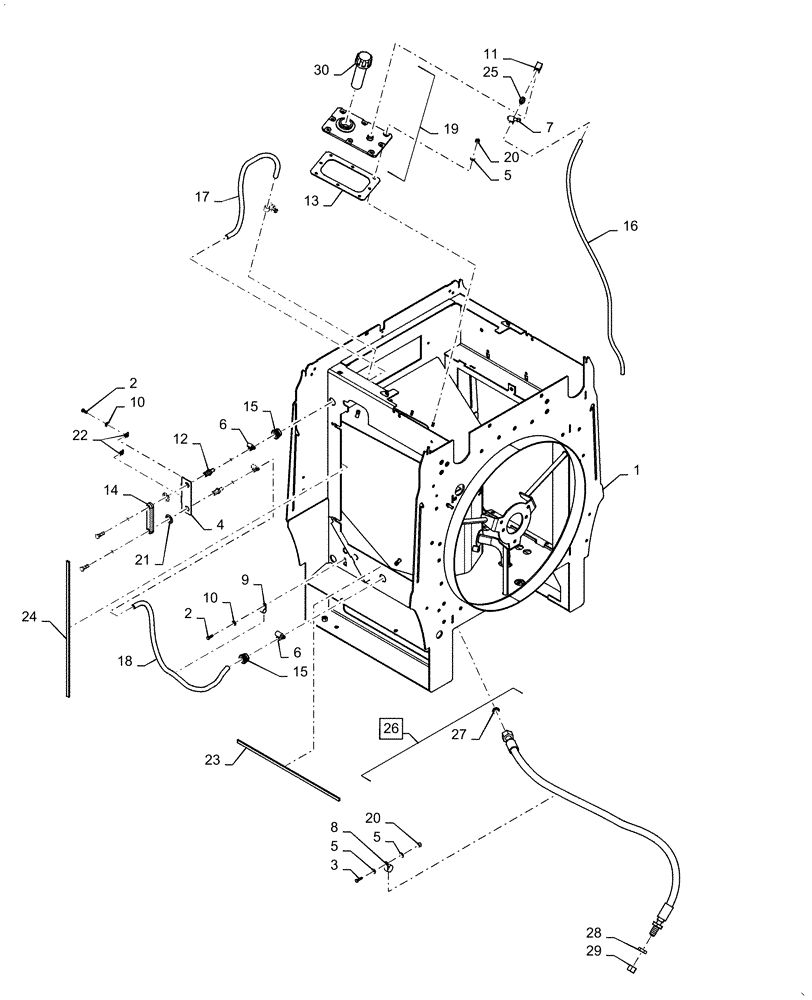

Запчасти Case 621F (35.300.AQ[01]) - HYDRAULIC RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

47575693

FRAME

Frame, Cooling System, 621F

1шт.

1

47575690

FRAME

Frame, Cooling System, 721F

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

4

47577217

BRACKET

Sight Guage

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

7

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

9

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

10

892-11008

LOCK WASHER,8mm ID

3шт.

11

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

12

76086829

HYD CONNECTOR

Sight Gauge

2шт.

13

379587A2

GASKET

Sight Gauge

1шт.

14

86988366

SIGHTGLASS

Sight Gauge

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

Sight Gauge

2шт.

16

31-2940

FUEL HOSE

Breather Hydraulic Tank

1шт.

17

47471712

HOSE

Sight Gauge Upper, 660mm Lg

1шт.

18

47471717

HOSE

Sight Gauge Lower, 970mm Lg

1шт.

18

47471713

HOSE

Sight Gauge Lower, 1020mm Lg

1шт.

19

8606005

CAP

Hydraulic Tank Assy, Incl 30

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

131-141

PUSH-ON NUT,.74", Push-on

2шт.

22

833-40408

NUT,M8, U

2шт.

23

87312068

OIL SEAL

630 mm (24-13/16 in)

2шт.

24

8500136

SEAL

725 mm (28-9/16 in)

2шт.

25

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

26

47418799

HYDRAULIC HOSE

Hydraulic Drain, Incl 27, 1475mm Lg

1шт.

26

84240223

HOSE,19.05mm ID x 1592mm L

Hydraulic Drain, Incl 27, 1592 Lg

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

29

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

30

87757884

FILLER CAP

Hydraulic Tank

1шт.
