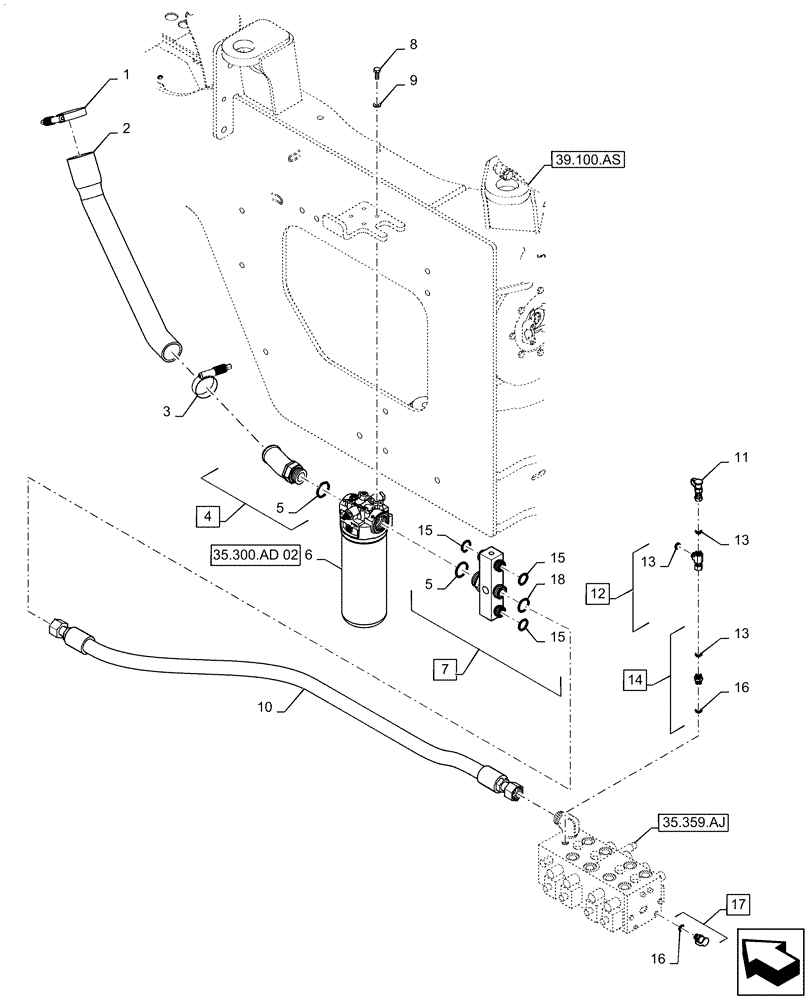

Запчасти Case 621F (35.300.AD) - HYDRAULIC RESERVOIR RETURN LINE (35) - HYDRAULIC SYSTEMS

1

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

1шт.

2

87629990

HOSE

Filter Return, 561mm Lg

1шт.

3

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

1шт.

4

390208A2

ADAPTER

Filter, Incl 5

1шт.

5

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Use Graphic Link

1шт.

7

87577181

MANIFOLD VALVE

Hydraulic Oil Filter, Incl 5, 15, 18

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

365516A2

HOSE ASSY.

Valve Return, 1613mm Lg

1шт.

11

190117A1

COUPLING

Diagnostic

1шт.

12

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 13

1шт.

13

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 13, 16

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

16

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

17

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Incl 16

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
