Запчасти Case 621F (35.100.AR[01]) - LIFT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS

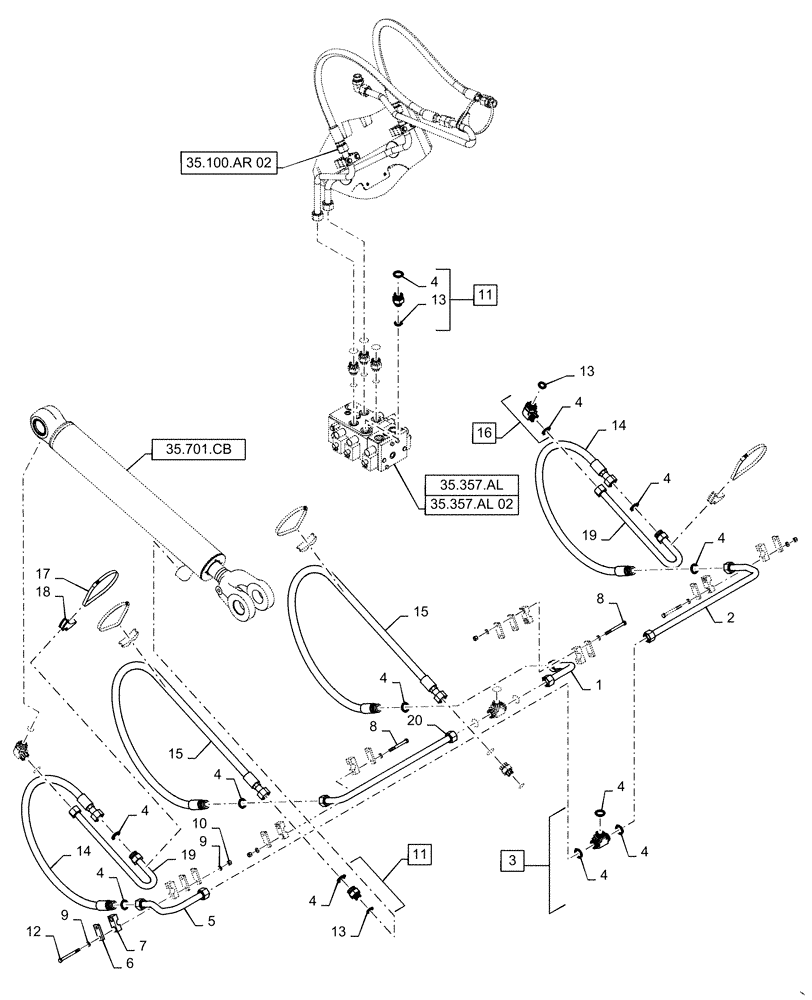

Схема запчастей Case 621F - (35.100.AR[01]) - LIFT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS
35.357.al 02
11
6
4
14
8
4
12
4
9
8
15
1
7
4
19
4
2
9
14
17
3
4
4
13
10
20
19
4
16
18
11
4
4
4
13
13
4
15
5
35.357.al
35.701.cb
35.100.ar 02

Артикул

Название

Примечание

Количество

1

8606098

TUBE,25.40 mm OD x 162, 142 mm L

Lift, Rod End, Serial Range: -NFF235000

1шт.

1

47850184

TUBE

Lift, Rod End, Start Serial: NFF235001

1шт.

2

8606092

TUBE,22mm ID x 25mm OD x 659mm L

Lift, Head End

1шт.

3

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 4

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

20шт.

5

87389172

HYD TUBE,19.4 mm ID x 25.40 mm OD x 222, 161.5 mm L

Lift, Head End, Serial Range: -NFF235000

1шт.

5

47850182

TUBE

Lift, Head End, Start Serial: NFF235001

1шт.

6

367658A1

PLATE

Clamp Cover

10шт.

7

367489A1

BLOCK

Tube Mounting

4шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

11

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4, 13

6шт.

12

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

8шт.

14

86983386

FLEXIBLE HOSE,19.05mm ID x 1145mm L

Lift, 1145mm Lg

2шт.

15

372359A1

HOSE ASSY.

Lift, 1760mm Lg

2шт.

16

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4, 13

2шт.

17

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

18

391133A1

CLAMP

Hose

4шт.

19

86983366

TUBE,25.40 mm OD x 385, 64 mm L

Lift Cylinder

2шт.

20

8606100

TUBE,25.40mm OD x 110, 659mm L

1шт.

Выбрано товаров: 22
