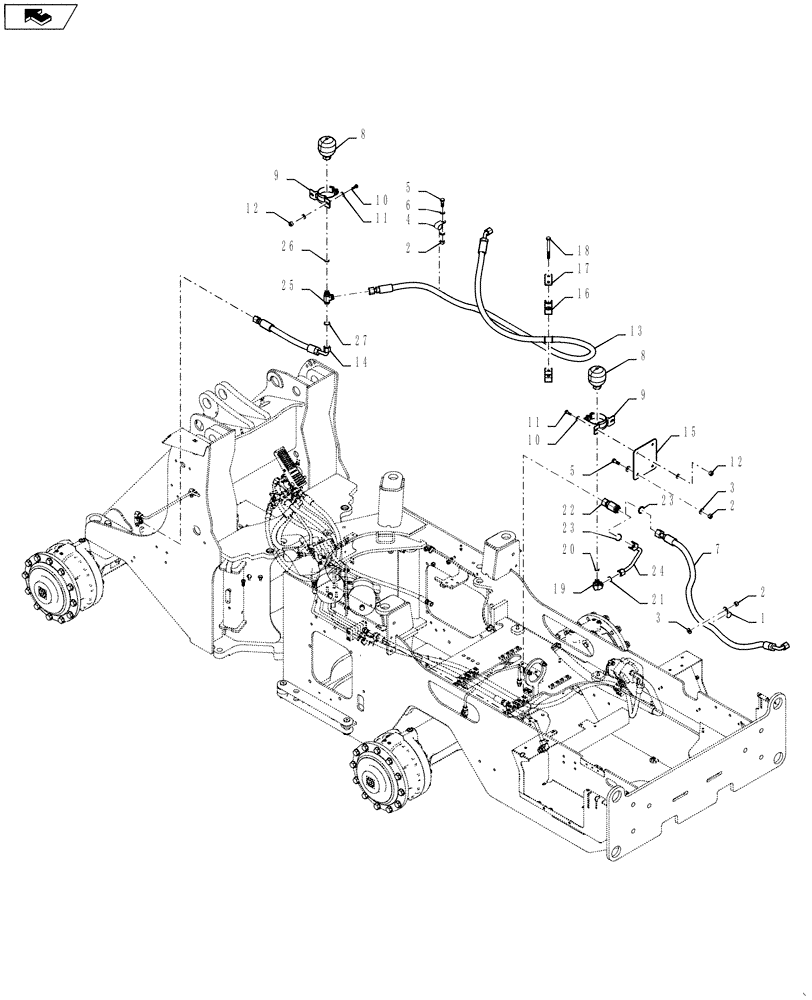

Запчасти Case 621F (33.202.AP[04]) - BRAKE LINE, HEAVY DUTY, AUXILIARY STEERING (33) - BRAKES & CONTROLS

1

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

5шт.

4

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

87587480

HOSE ASSY.

Rear Axle Brake, 910mm Lg

1шт.

8

84393492

ACCUMULATOR

Brake Damping

2шт.

9

84272713

CLAMP,73mm - 79mm

Accumulator

2шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

84384080

HOSE ASSY.

Brake Valve To Damper, 2675.7mm Lg

1шт.

14

84384081

HOSE ASSY.

Brake Damper To Axle, 395.7mm Lg

1шт.

15

84382777

BRACKET, SUPPORTING

Brake Damper Aux Steering

1шт.

16

367489A1

BLOCK

Block Tube Mounting

1шт.

17

367658A1

PLATE

Clamp Cover

1шт.

18

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

19

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 20, 21

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 23

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

84382781

HYD TUBE

Brake Damper Aux Steering

1шт.

25

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl 26, 27

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
