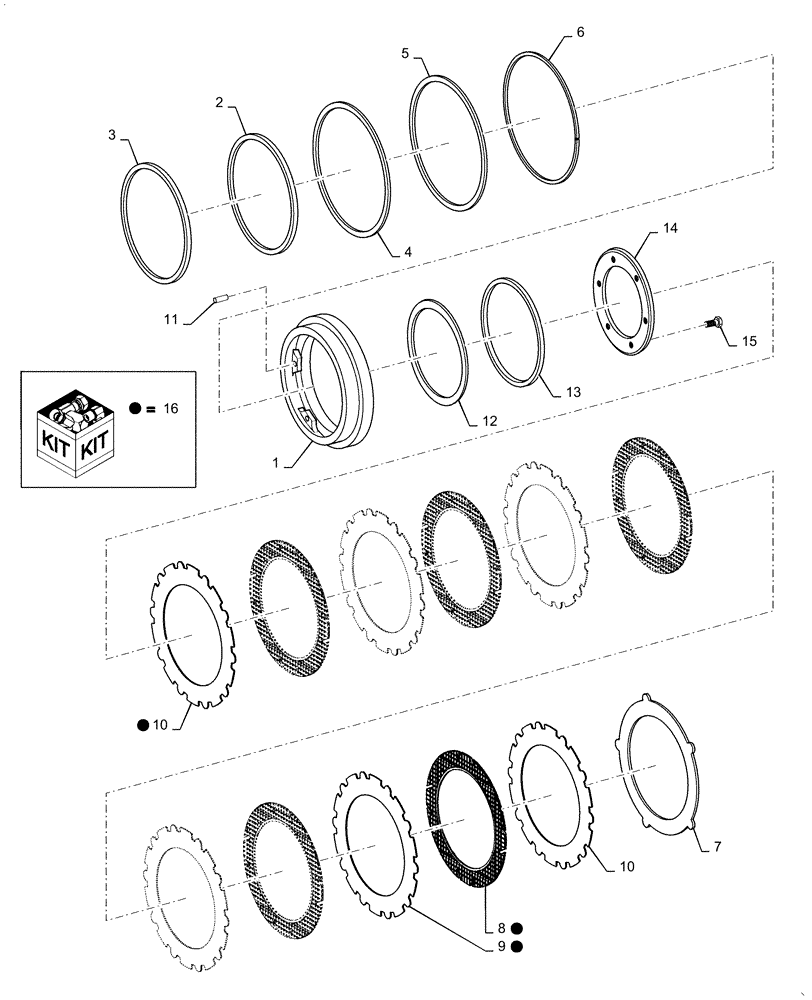

Запчасти Case 621F (33.202.AK) - FRONT AND REAR AXLE BRAKE ASSEMBLY, STANDARD (33) - BRAKES & CONTROLS

1

84353913

PISTON

Brake

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston

1шт.

3

8603577

RING

Piston Seal

1шт.

4

8605315

SEAL

Brake Piston

1шт.

5

8603579

RING

Piston Seal Support

1шт.

6

8603580

SNAP RING

Piston Brake Guide

1шт.

7

84150637

SHIM

End

1шт.

8

NSS

NOT SOLD SEPARAT

Available In Service Kit Only, Incl 16

4шт.

9

NSS

NOT SOLD SEPARAT

Available In Service Kit Only, Incl 16

3шт.

10

NSS

NOT SOLD SEPARAT

Available In Service Kit Only, Incl 16

2шт.

11

87743218

PIN

Brake Piston

6шт.

12

84329424

CUP WASHER

Brake Piston

1шт.

13

84329425

SPRING CUP

Brake Piston

1шт.

14

84395485

COVER PLATE

Brake Piston

1шт.

15

84395924

SCREW

Brake Piston Cover Plate

6шт.

16

87365252

REPAIR KIT

Brake Service Kit, One Kit Per Axle, Incl 8 - 10

1шт.
