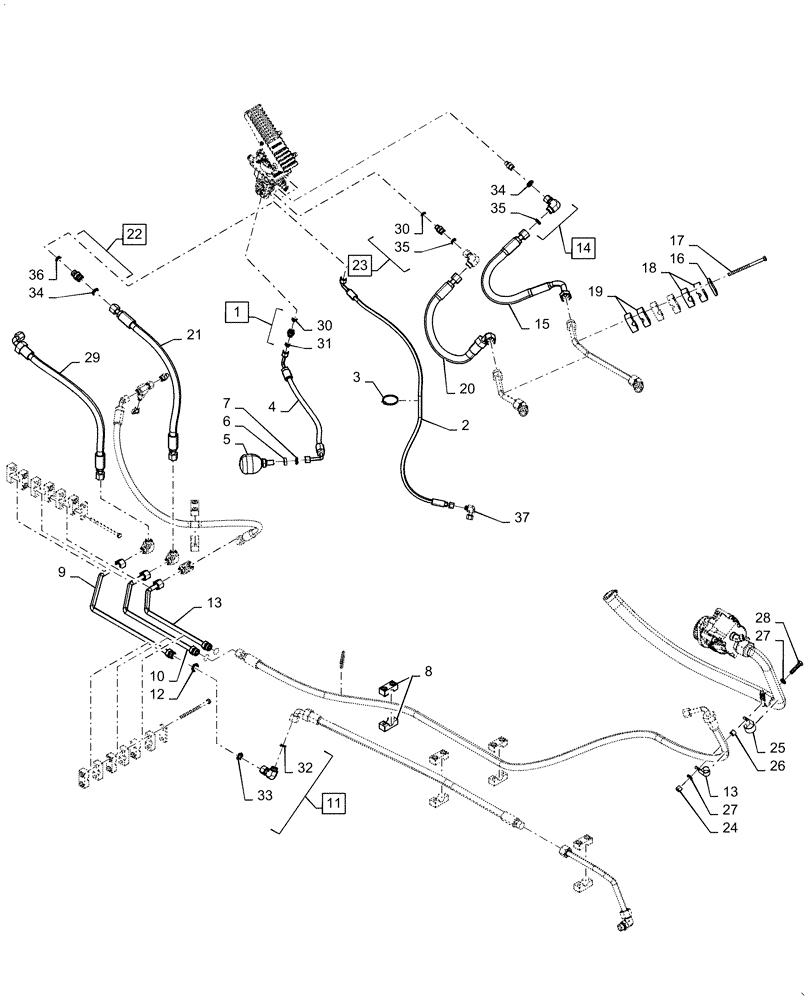

Запчасти Case 621F (33.202.AA[03]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 30 - 31

2шт.

2

84373987

HOSE ASSY.

Parking Brake, 1210mm Lg

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

4

84362170

HOSE ASSY.

Parking Brake Acc., 612mm Lg

1шт.

5

8500209

ACCUMULATOR

Parking Brake

1шт.

6

701-909

NUT,11/16" - 16

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

367489A1

BLOCK

Tube Mounting

4шт.

9

87326263

TUBE,15.88 mm OD

Fan Supply

1шт.

10

87326262

TUBE,15.88 mm OD

Brake Supply

1шт.

11

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

Incl 32 - 33

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

13

87326268

TUBE,15.88 mm OD

Rear Axle Brake

1шт.

14

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

Incl 34 - 35

2шт.

15

84308886

FLEXIBLE HOSE

Rear Brake Accumulator, 589mm Lg

1шт.

16

367658A1

PLATE

Clamp Cover

4шт.

17

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

6шт.

18

8501052

SPECIAL CLAMP

Block, Tube Mounting

1шт.

19

379374A1

BLOCK

Tube Mounting

3шт.

20

84308885

FLEXIBLE HOSE

Front Brake Accumulator, 577mm Lg

1шт.

21

84300560

FLEXIBLE HOSE

Brake Valve Supply, 738mm Lg

1шт.

22

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 34, 36

2шт.

23

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 30, 35

4шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

25

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

26

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

Hood Linkage, 12.243mm ID x 19.177mm OD x 14mm Thk

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

28

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

29

84300561

FLEXIBLE HOSE

Brake Valve Discharge, 777mm Lg

1шт.

30

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

33

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.
