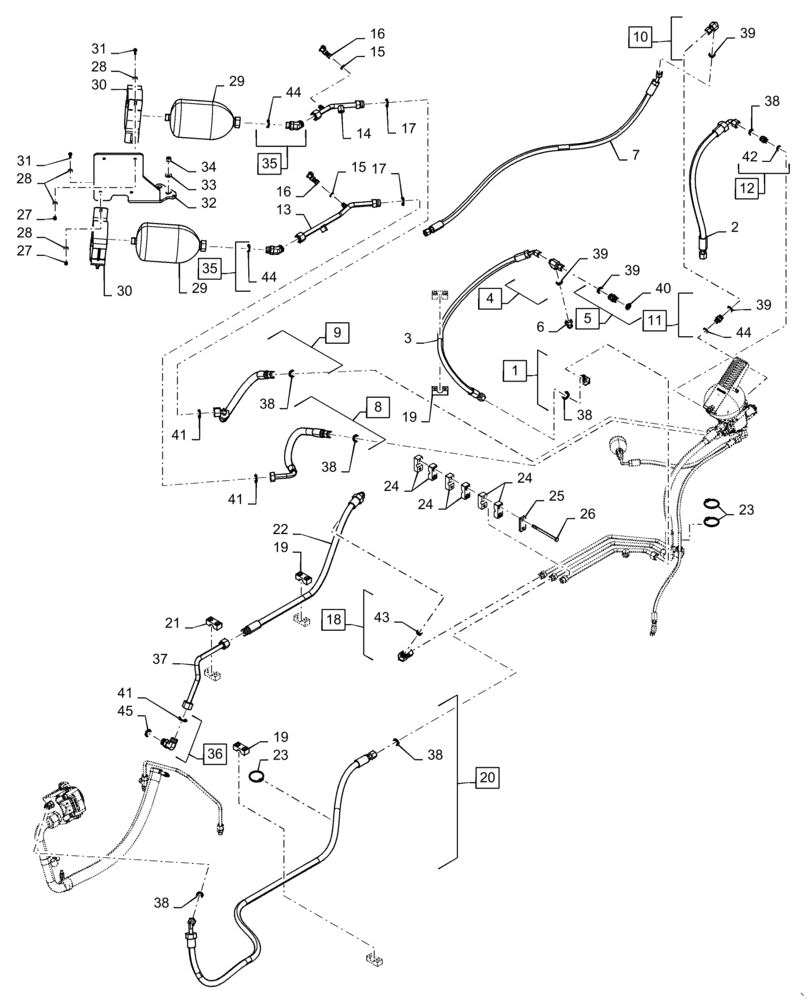

Запчасти Case 621F (33.202.AA[02]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

9840570

ELBOW,90 Degree, 13/16"-16 ORFS

Incl 38

3шт.

2

84300561

FLEXIBLE HOSE

Brake Valve Discharge, 777mm Lg

1шт.

3

87325999

HOSE ASSY.

Rear Axle Brake, 1206mm Lg

1шт.

4

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Incl 39

2шт.

5

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 39, 40

4шт.

6

190316A1

COUPLING

Diagnostic

2шт.

7

84337115

FLEXIBLE HOSE

Return - Brake Valve To Tank, 1615mm Lg

1шт.

8

84308886

FLEXIBLE HOSE

Rear Brake Accumulator, 589mm Lg, Incl 38, 41

1шт.

9

84308885

FLEXIBLE HOSE

Front Brake Accumulator, 577mm Lg, Incl 38, 41

1шт.

10

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 39

2шт.

11

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 39, 45

2шт.

12

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 38, 43

2шт.

13

84576177

RIGID TUBE

Rear Brake Accumulator

1шт.

14

84576181

RIGID TUBE

Front Brake Accumulator

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

190117A1

COUPLING

Diagnostic

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 44

1шт.

19

367489A1

BLOCK

Tube Mounting

4шт.

20

47767303

HOSE

Brake Pump Pressure, 2478.4mm Lg, Incl 38

1шт.

21

379374A1

BLOCK

Tube Mounting

3шт.

22

87658724

HOSE ASSY.

Fan Supply, 1049mm Lg

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

24

8500210

CLAMP

Block, Tube Mounting

6шт.

25

367658A1

PLATE

Clamp Cover

4шт.

26

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

6шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

28

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

29

87728740

ACCUMULATOR

Service Brake

2шт.

30

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

31

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

32

84295689

BRACKET, SUPPORTING

Brake Accumulator

1шт.

33

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

34

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

35

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Incl 45

2шт.

36

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 41, 46

1шт.

37

87658725

TUBE,19.05 mm OD x 290 mm L

1шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

39

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

40

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

4шт.

41

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

42

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

43

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

44

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

45

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
