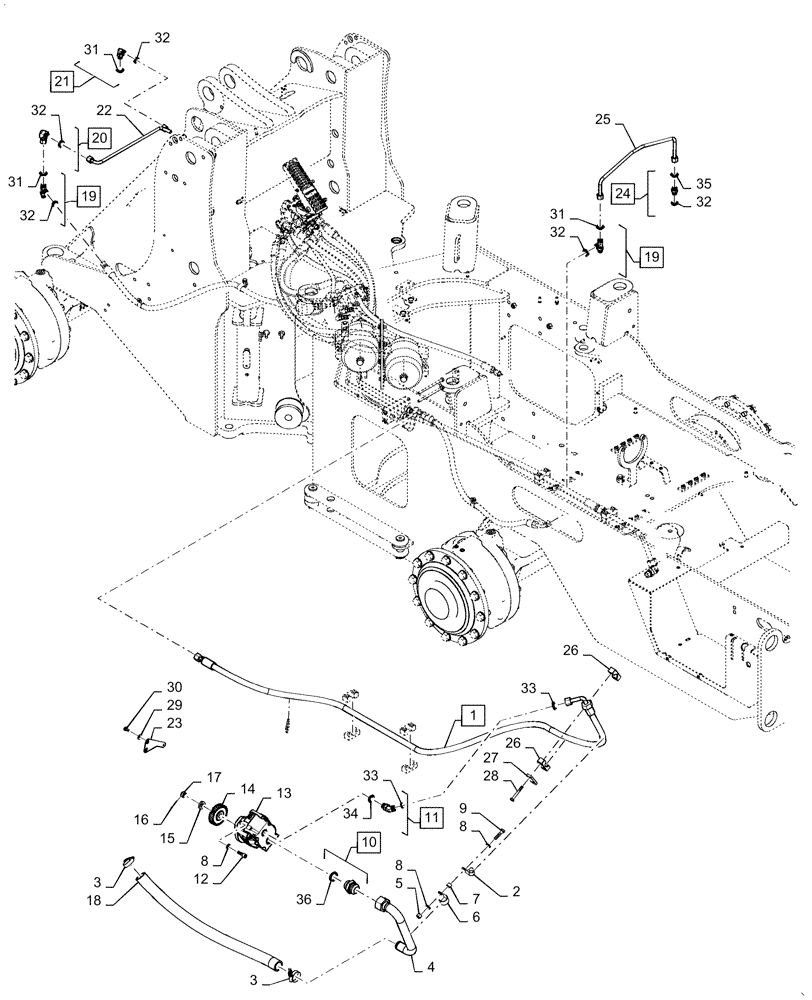

Запчасти Case 621F (33.202.AA[01]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

47767303

HOSE

Assy, Brake Pump Pressure, Incl 33

1шт.

2

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

3

76084984

CLAMP,45mm - 67mm, Worm Clamp

2шт.

4

87554993

RIGID TUBE,28 mm ID x 38 mm OD x 310, 105 mm L

1шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

6

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

7

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

Hood Linkage

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

10

87555427

HYD CONNECTOR

1 7/8"-12 SAE J514, 37° Flare x M33 x 2 ORB, Incl 36

1шт.

11

86639053

ELBOW,45 Degree, 1"-14 ORFS x M22 x 1.5 ORB

Incl 33, 34

1шт.

12

864-12035

HEX SOC SCREW,M12 x 35mm, Cl 8.8

2шт.

13

47526503

HYDRAULIC PUMP

25 CC Gear

1шт.

13

47526503R

HYDRAULIC PUMP

25 CC Gear

1шт.

13

47526503C

PUMP

Return Number

1шт.

14

87389871

GEAR

Accessory Drive

1шт.

15

87373112

WASHER,20mm ID x 36mm OD x 7.5mm Thk

Gear Mounting

1шт.

16

733-3232

COTTER PIN,M3.2 x 32

1шт.

17

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

18

84399612

HOSE,38.1mm ID x 850mm L, SAE 100R4

Brake Pump Suction

1шт.

19

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 31, 32

2шт.

20

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 32

2шт.

21

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 31, 32

1шт.

22

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

1шт.

23

47542869

PLATE

Harness Routing

1шт.

24

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 32, 35

2шт.

25

87628241

TUBE,10.22 mm ID x 12.7 mm OD x 480, 174 mm L

1шт.

26

8606002

CLAMP

Block Tube Mounting

1шт.

27

367658A1

PLATE

Clamp Cover

4шт.

28

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

29

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

30

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

31

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

32

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
