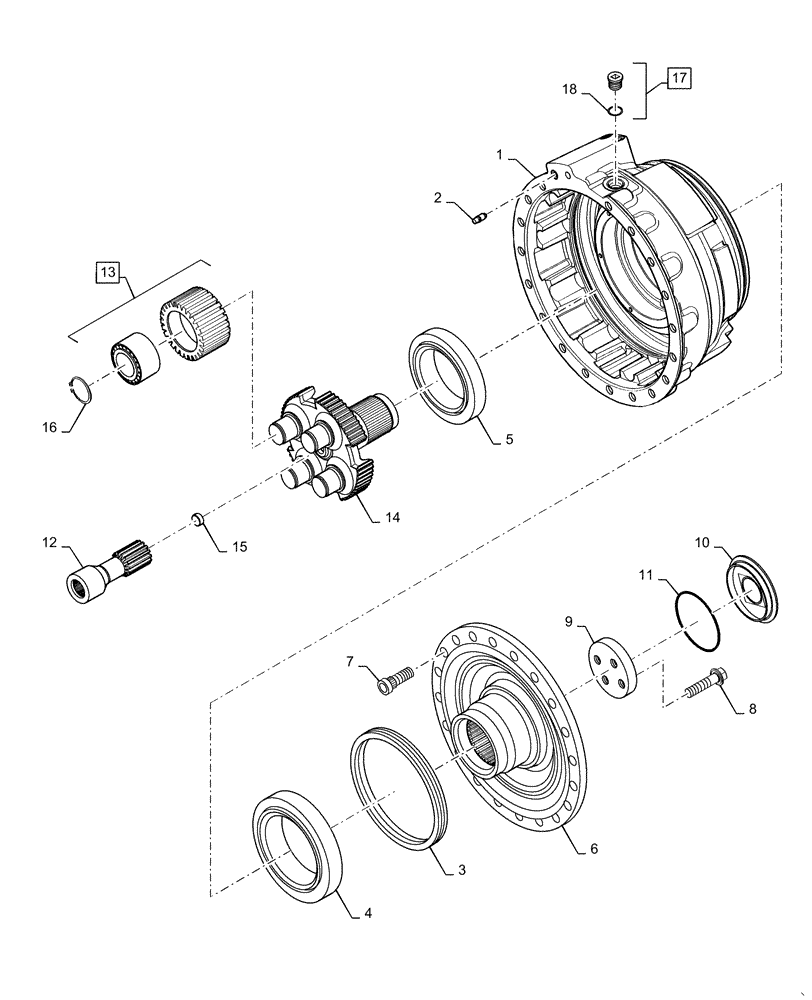

Запчасти Case 621F (27.120.AF[01]) - FINAL DRIVE ASSEMBLY, HEAVY DUTY (27) - REAR AXLE SYSTEM

1

84396154

HOUSING

Final Drive

1шт.

2

76088742

VALVE

Vent

1шт.

3

87588611

SEAL

Wheel End

1шт.

4

84329409

TAPERED BEARING

Cup and Cone

1шт.

5

87743209

TAPERED BEARING

Cup and Cone

1шт.

6

84396164

FLANGE

Wheel Cover

1шт.

7

84497836

SCREW

Flange Wheel Mounting

12шт.

8

84329412

LOCK SCREW

Shaft

4шт.

9

87743211

COVER

Shaft Cover Mounting

1шт.

10

8603567

COVER

Wheel Flange

1шт.

11

8603527

O-RING

Cover Seal

1шт.

12

84395432

SUN GEAR

Planetary Carrier

1шт.

13

84497842

GEAR

Planetary Gear and Bearing Set

4шт.

14

84497844

PLANET CARRIER

Assembly

1шт.

15

8603571

PLUG

Planetary Carrier

1шт.

16

87358698

SNAP RING

Planetary Gear, Retaining

4шт.

17

84401558

PLUG

Upper Housing, Incl 18

1шт.

18

8603208

O-RING,2mm Thk x 21mm ID

1шт.
