Запчасти Case 621F (25.102.AT) - LOCKING DIFFERENTIAL HOSE INSTALLATION (25) - FRONT AXLE SYSTEM

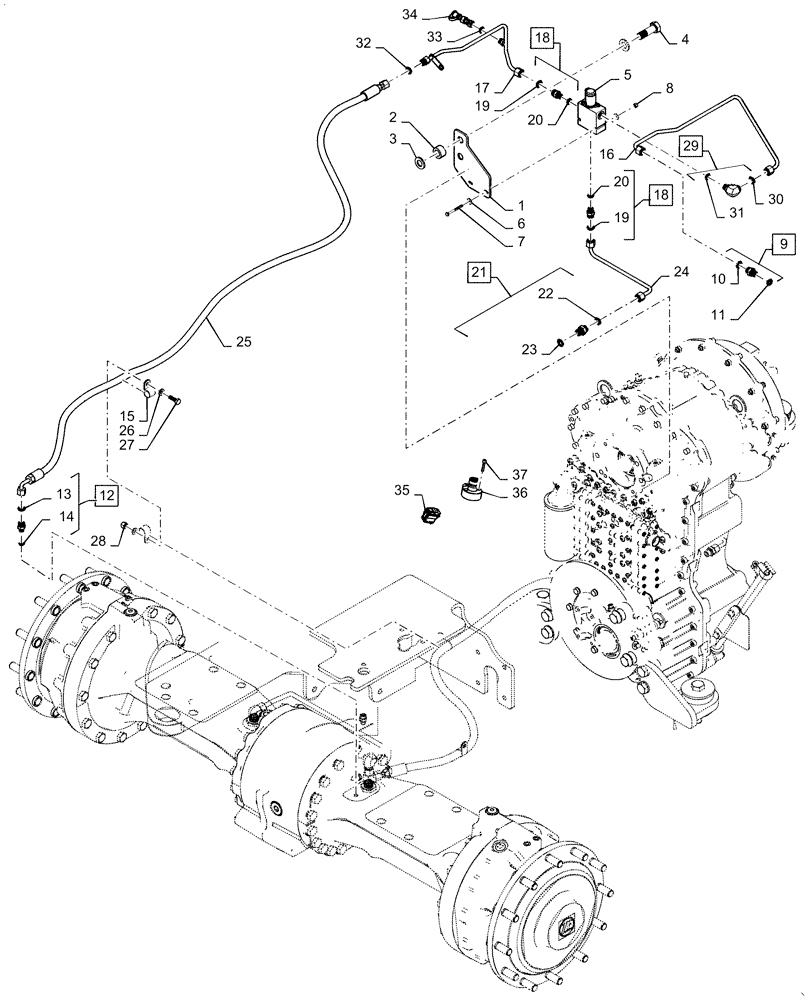

Схема запчастей Case 621F - (25.102.AT) - LOCKING DIFFERENTIAL HOSE INSTALLATION (25) - FRONT AXLE SYSTEM
13
7
37
12
18
14
27
8
11
25
2
34
36
17
18
29
28
9
1
35
30
24
19
26
33
5
22
19
4
10
21
23
16
32
15
20
31
6
20
3

Артикул

Название

Примечание

Количество

1

84415308

BRACKET

Diff Lock Valve CNH Black

1шт.

2

87036419

SPACER,26.64mm ID x 33.4mm OD x 19.05mm L

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

5

84300976

LOCK VALVE

Diff

1шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 10, 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl 13, 14

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

15

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

16

84414911

TUBE

Diff Lock Press

1шт.

17

84481260

RIGID TUBE

Diff Lock Axle Press

1шт.

18

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 19, 20

2шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

21

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 22, 23

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

24

84492784

TUBE

Diff Lock Return

1шт.

25

84412663

HOSE

Diff Lock Axle Press, 2345mm Lg

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 30, 31

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

33

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

190117A1

COUPLING

Diagnostic

1шт.

35

84266169

DIFF LOCK SWITCH

Switch, Connects to Cab Harness

1шт.

36

84313033

DIFF LOCK SWITCH

Switch, Foot, Connects to Cab Harness

1шт.

37

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

2шт.

Выбрано товаров: 37
