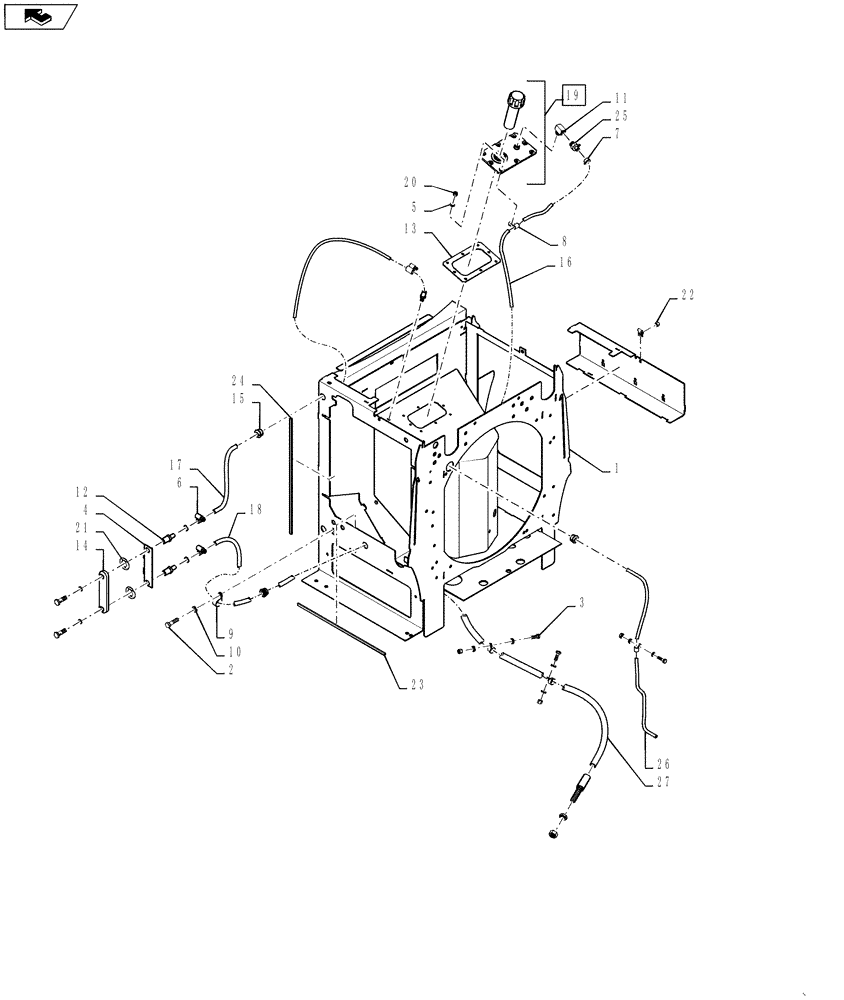

Запчасти Case 621F (10.400.03) - HYDRAULIC RESERVOIR ASSEMBLY (10) - ENGINE

1

47359656

FRAME

English Decals

1шт.

1

47359660

FRAME

French Canadian Decals

1шт.

1

47359662

FRAME

Spanish Decals

1шт.

1

47359665

FRAME

International Region

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

3

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

4

87493002

BRACKET

Sight Guage

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

7

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

9

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

10

892-11008

LOCK WASHER,8mm ID

3шт.

11

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

12

L125836

FITTING

2шт.

13

379587A2

GASKET

1шт.

14

86988366

SIGHTGLASS

Sight Gauge

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

16

31-2940

FUEL HOSE

Breather Hydraulic Tank

1шт.

17

47471712

HOSE

Sight Gauge Upper

1шт.

18

47471717

HOSE

Sight Gauge Lower

1шт.

19

8606005

CAP

Hydraulic Tank

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

21

131-141

PUSH-ON NUT,.74", Push-on

2шт.

22

833-40408

NUT,M8, U

10шт.

23

87312068

OIL SEAL

630 mm (24-13/16 in)

2шт.

24

8500136

SEAL

725 mm (28-9/16 in)

2шт.

25

8606006

VALVE, CHECK

Hydraulic Tank

1шт.

26

8500164

HOSE

Sight Gauge Upper

1шт.

27

84582828

HOSE ASSY.

Hydraulic Drain

1шт.
