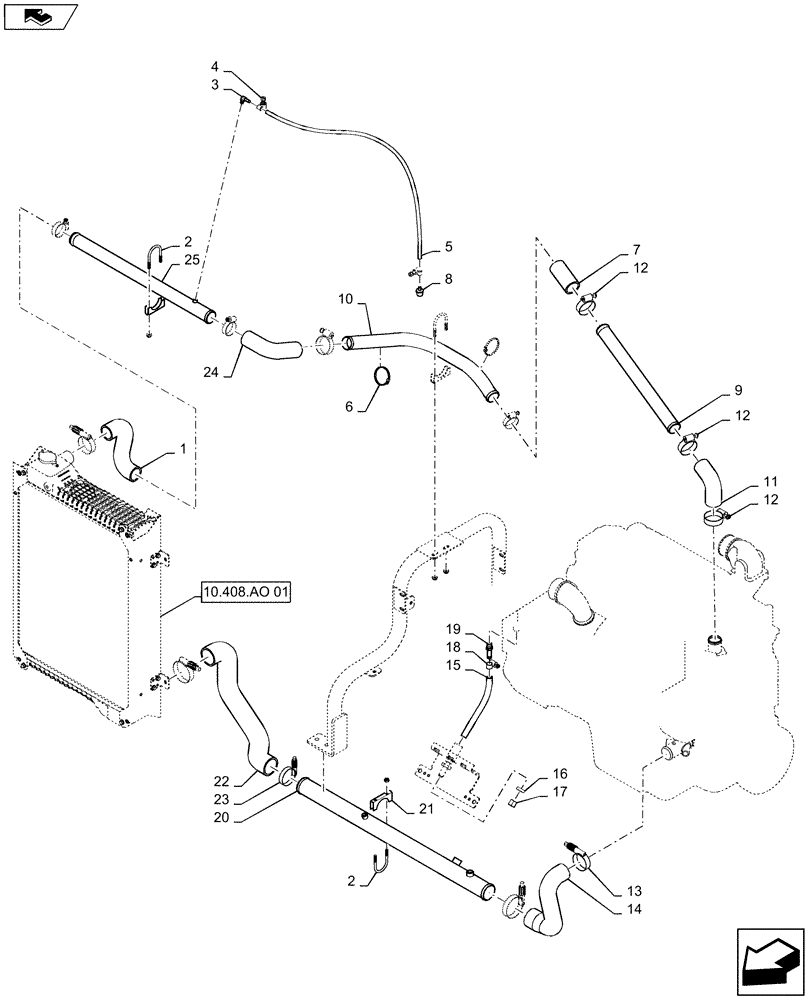

Запчасти Case 621F (10.400.01) - RADIATOR HOSES AND TUBE INSTALLATION (10) - ENGINE

1

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

Top

1шт.

2

382189A1

CLAMP

U-Bolt

2шт.

3

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

5

307169A1

HOSE

Breather

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

Strap

2шт.

7

8501025

FLEXIBLE HOSE,44.50 mm ID x 110.00 mm, SAE 20R4 Class D1

Coolant-Split

1шт.

8

87635840

VALVE

Check, Venting

1шт.

9

87617019

HYD TUBE,41.2 mm ID x 44.5 mm OD x 513 mm L

Top, Engine Coolant

1шт.

10

84293051

TUBE

Top, Coolant

1шт.

11

84208238

HOSE

Elbow

1шт.

12

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

7шт.

13

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

2шт.

14

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

Engine Bottom

1шт.

15

87536091

HOSE ASSY.

Coolant Drain

1шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

17

218-755

CAP,37 Degree, 3/4"-16

1шт.

18

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

19

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

20

84302103

TUBE

Bottom, Coolant

1шт.

21

393632A1

CLAMP

U-Bolt

2шт.

22

87552485

HOSE

Radiator Bottom

1шт.

23

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

3шт.

24

84293049

HOSE

90 Deg Elbow

1шт.

25

84293052

TUBE

Top Coolant

1шт.
