(10.310.02) - CHARGE AIR COOLER, HOSES AND TUBES

Запчасти Case 621F (10.310.02) - CHARGE AIR COOLER, HOSES AND TUBES (10) - ENGINE

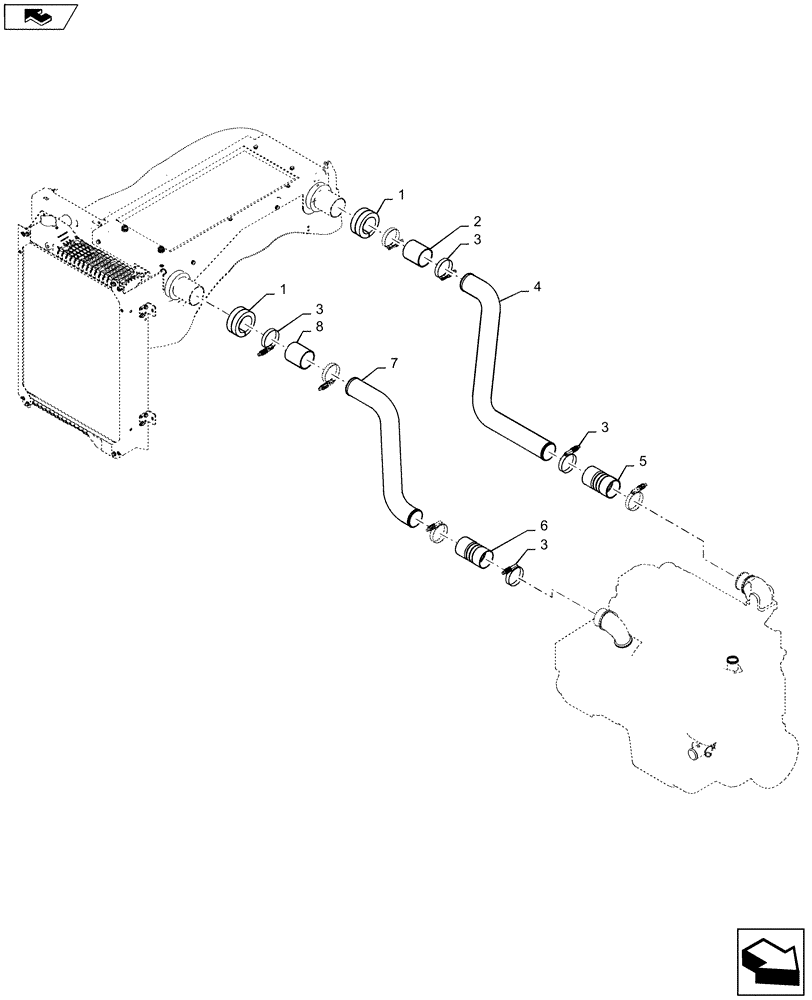

Схема запчастей Case 621F - (10.310.02) - CHARGE AIR COOLER, HOSES AND TUBES (10) - ENGINE
8
2
1
1
3
4
6
3
3
3
home
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8500167

SEAL

Charge Air Cooler

2шт.

2

87572378

HOSE

Air Intake

1шт.

3

L115549

CLAMP,69.85mm - 92.08mm

8шт.

4

87644742

AIR INTAKE TUBE

Charge Air Intake

1шт.

5

87340015

INTAKE AIR HOSE,76.20mm ID x 140mm L

Charge Air

1шт.

6

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

Charge Air

1шт.

7

87552496

TUBE,3" OD

Charge Air, Turbo

1шт.

8

87572375

HOSE,76.2mm ID x 89mm L

Air Intake

1шт.
