Запчасти Case 621F (10.202.01) - AIR CLEANER INSTALLATION (10) - ENGINE

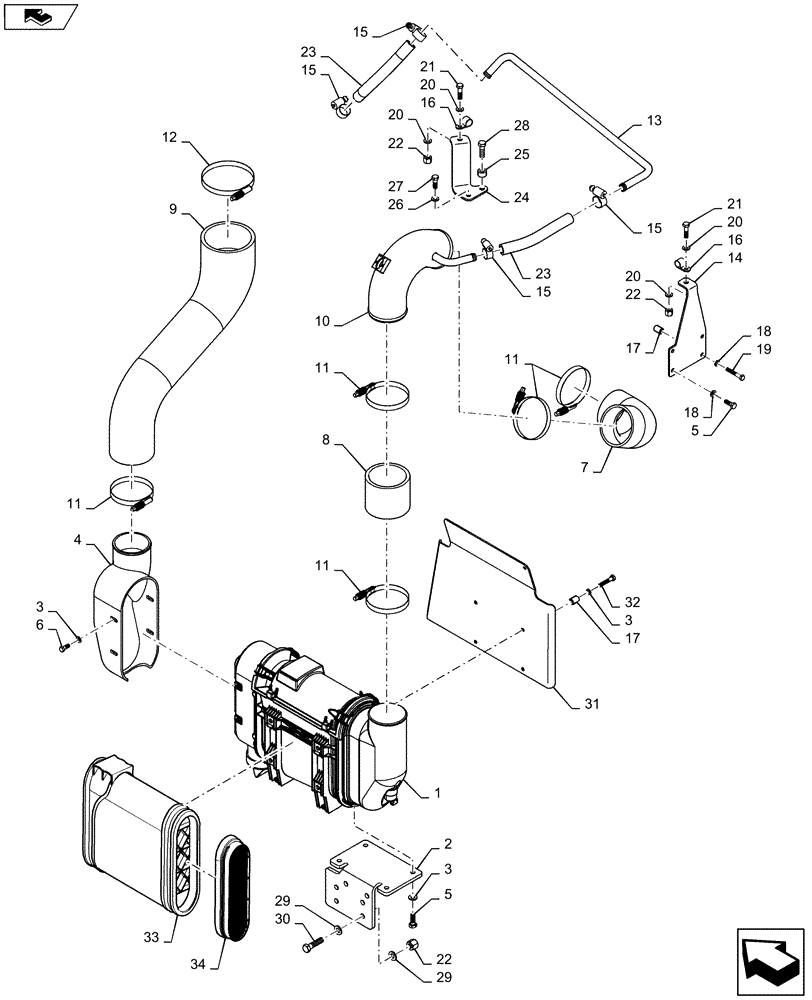

Схема запчастей Case 621F - (10.202.01) - AIR CLEANER INSTALLATION (10) - ENGINE
27
18
19
25
1
3
16
5
20
12
29
4
18
16
23
6
33
32
17
31
15
11
17
11
22
22
9
20
20
26
34
5
15
8
14
15
3
22
11
23
2
7
11
3
21
20
21
home
30
29
15
13
24
28
10

Артикул

Название

Примечание

Количество

1

84247028

AIR CLEANER

1шт.

2

47656859

BRACKET

Air Cleaner

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

4

84207843

INLET MANIFOLD

Air Cleaner

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

7

84190200

90 ELBOW

Elbow, 90 Degree 4"

1шт.

8

8602478

INTAKE AIR HOSE,101.60 mm ID x 100.00 mm, SAE J200

Air Cleaner

1шт.

9

84247030

AIR INTAKE TUBE

1шт.

10

84207381

AIR INTAKE TUBE

NA/EU Only

1шт.

10

84342810

TUBE

INT Only

1шт.

11

L127771

CLAMP,107.95mm - 130.18mm

Constant Torque Hose Clamp

5шт.

12

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

Constant Torque Hose Clamp

1шт.

13

84374321

VENTILATION PIPE

CCV Tube, NA/EU Only

1шт.

14

84374319

BRACKET, SUPPORTING

CCV Tube Support

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

17

87748964

SPACER

6шт.

18

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

19

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

20

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

23

84374323

HOSE,19.05mm ID x 240mm L, SAE 100R4

2шт.

24

84374322

BRACKET, SUPPORTING

1шт.

25

D44696

BUSHING

Spacer 1/2 Pipe x 1/2

1шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

28

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

29

895-15012

WASHER,M12 x 28 x 2.5

8шт.

30

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

31

84300930

HEAT SHIELD

1шт.

32

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

4шт.

33

84392297

ELEMENT

Primary Element

1шт.

34

87720899

ELEMENT

Secondary Element

1шт.

Выбрано товаров: 35
