Запчасти Case 621F (10.105.01) - CONNECTING ROD (10) - ENGINE

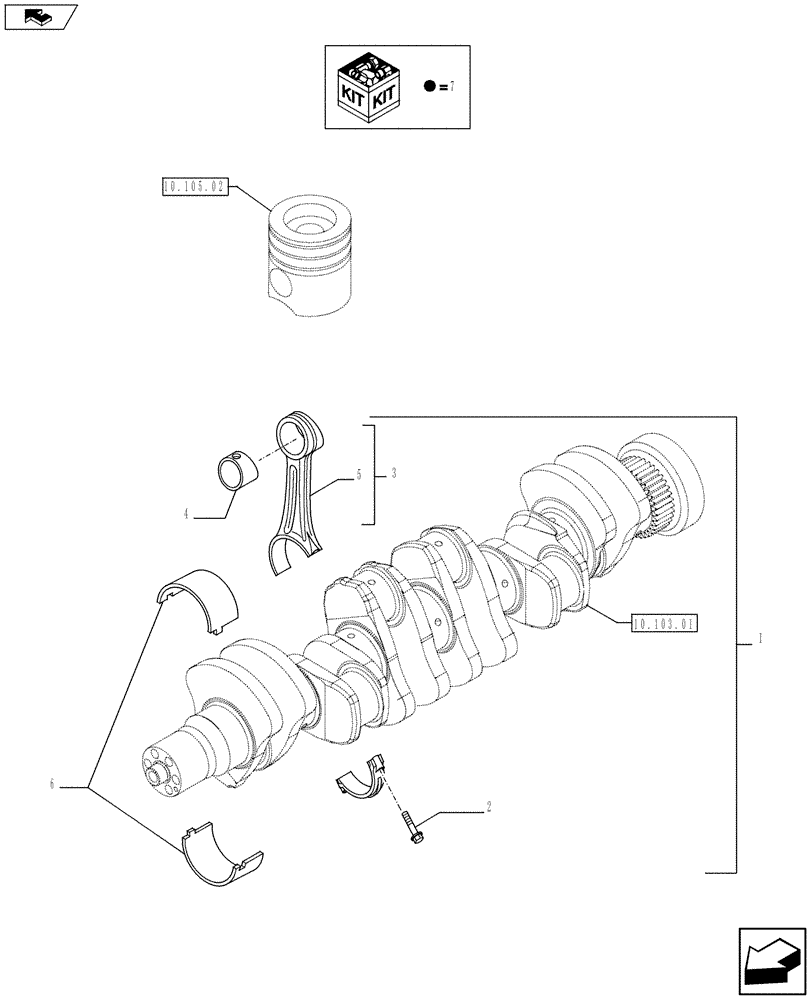

Схема запчастей Case 621F - (10.105.01) - CONNECTING ROD (10) - ENGINE
7
3
4
10.105.02
home
10.103.01
5
6
2
7
1

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

- ASSY, Inc. 2 -5

6шт.

1

2831298R

REMAN-CONNECTING ROD

6шт.

1

2831298C

CORE-ROD CONNECTING

Return Number

6шт.

2

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

3

NSS

NOT SOLD SEPARAT

Inc. 4, 5

1шт.

4

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

8093882

BEARING SET

Connecting Rod Bearing, Standard

1шт.

6

8094960

BEARING SET,(-0.250)

Connecting Rod Bearing, Undersize, 0.25 mm

1шт.

6

8094961

BEARING SET,(-0.500)

Connecting Rod Bearing, Undersize, 0.50 mm

1шт.

Выбрано товаров: 10
