Запчасти Case 621F (90.160.08) - CAB, EXTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

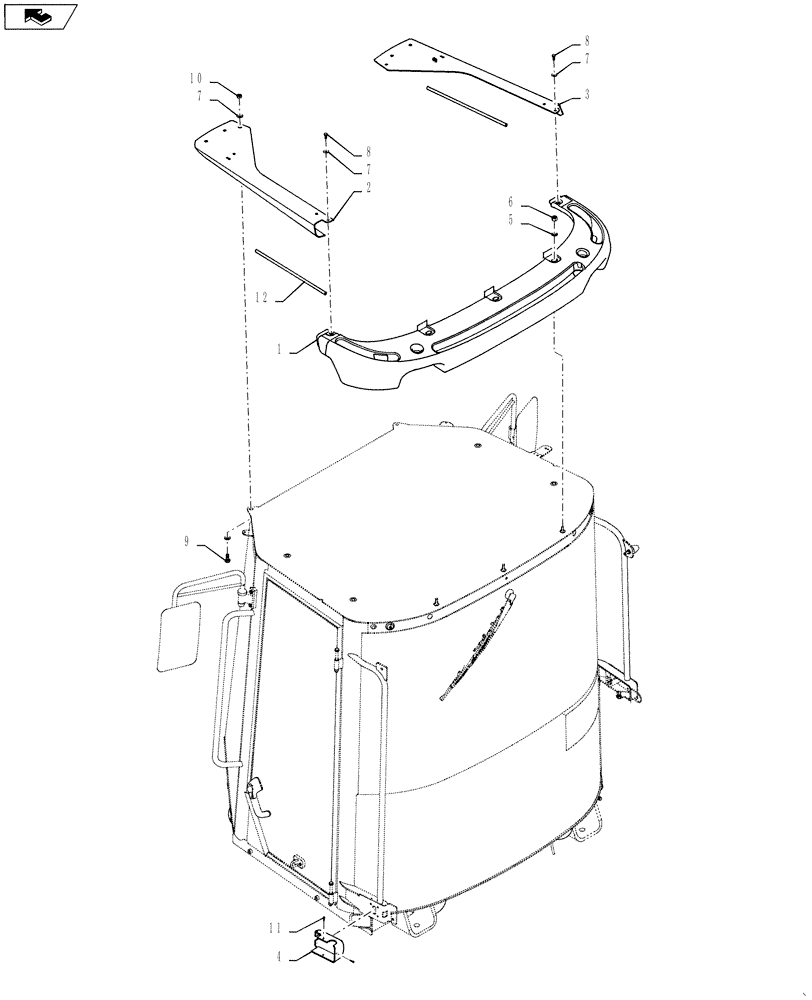

Схема запчастей Case 621F - (90.160.08) - CAB, EXTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
8
11
4
8
10
9
7
7
6
home
1
5
7
12

Артикул

Название

Примечание

Количество

1

84496735

MOLDING

Moulding Rear

1шт.

2

84496721

MOLDING

Moulding, Left Front

1шт.

3

84496720

MOLDING

Moulding, Right Front

1шт.

4

87493705

COVER

Door Latch

1шт.

5

87664050

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

87664051

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

10

16100814

NUT,M8, Cl 8, DAC

2шт.

11

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

3шт.

12

87720305

MOLDING

Seal

2шт.

Выбрано товаров: 12
