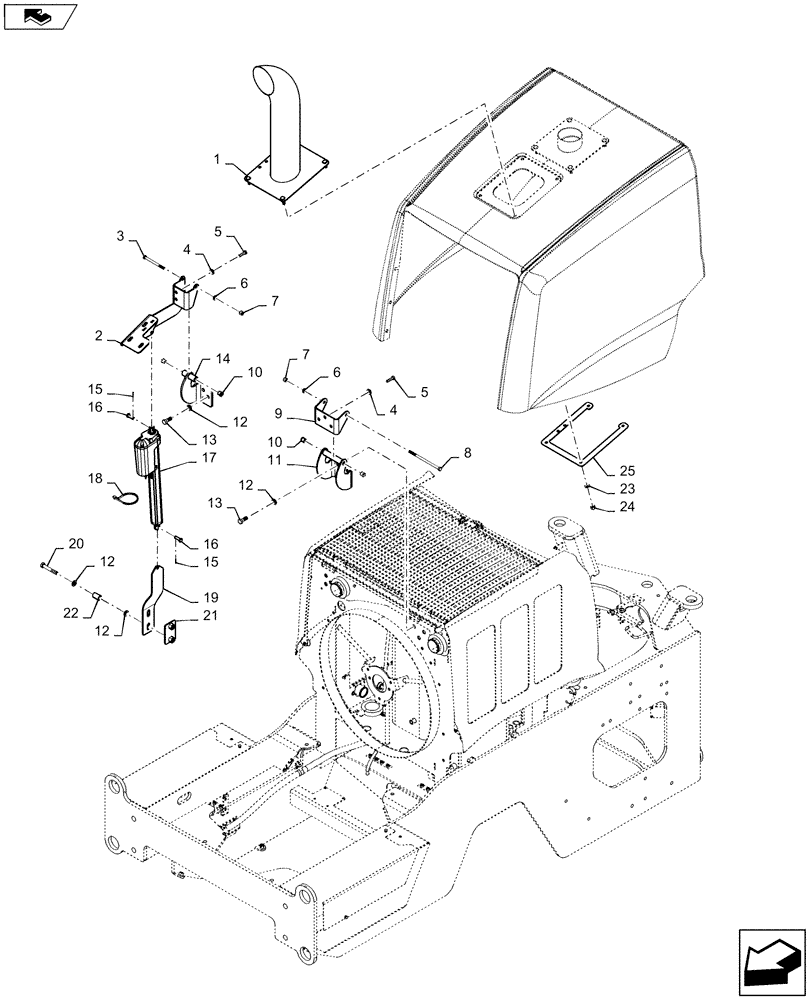

Запчасти Case 621F (90.105.02[03]) - ENGINE HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8500375

EXHAUST SYSTEM PIPE

1шт.

2

87625616

BRACKET

Lift

1шт.

3

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

1шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

827-12220

BOLT,Hex, M12 x 1.75 x 220mm, Cl 10.9

1шт.

9

8501151

HINGE

Right

1шт.

10

382495A1

BUSHING

4шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

14

8605371

LATCH HOOK

Left

1шт.

15

733-3220

COTTER PIN,M3.2 x 20

2шт.

16

728-1240

CLEVIS PIN,M12 x 40

2шт.

17

47382420

ACTUATOR

375mm Stroke

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

19

47386219

BRACKET

1шт.

20

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

21

47386214

ANCHOR

1шт.

22

363131A2

SPACER

2шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

25

408196A1

PLATE

Backing

1шт.
