(82.100.07) - ACS QUICK COUPLER, XT BAR

Запчасти Case 621F (82.100.07) - ACS QUICK COUPLER, XT BAR (82) - FRONT LOADER & BUCKET

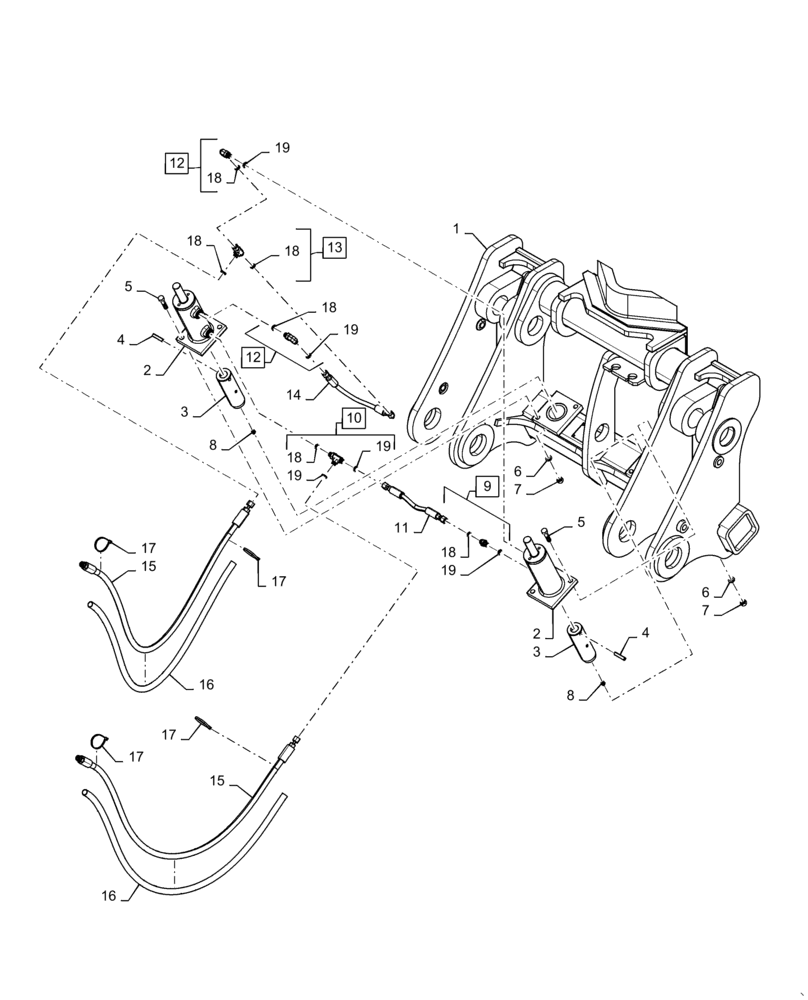

Схема запчастей Case 621F - (82.100.07) - ACS QUICK COUPLER, XT BAR (82) - FRONT LOADER & BUCKET
17
18
8
19
1
19
14
6
19
18
3
6
4
15
5
17
18
7
19
3
12
17
11
15
5
10
12
17
18
13
9
16
19
2
2
18
7
8
4
18
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494323

FRAME

1шт.

2

84538634

HYDRAULIC CYLINDER

2шт.

3

84538636

PIN,50.8mm OD x 162.6mm L

Coupler Plunger

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18 - 19

1шт.

10

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18 - 19

1шт.

11

84539838

HYDRAULIC HOSE

1шт.

12

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 18 - 19

2шт.

13

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 18 - 19

1шт.

14

84538677

HYDRAULIC HOSE

1шт.

15

84577431

HOSE ASSY.

2шт.

16

87497870

PROTECTIVE SLEEVE

2шт.

17

86566989

CABLE TIE,208mm L

4шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

5шт.
