(82.100.05) - ACS QUICK COUPLER, Z-BAR

Запчасти Case 621F (82.100.05) - ACS QUICK COUPLER, Z-BAR (82) - FRONT LOADER & BUCKET

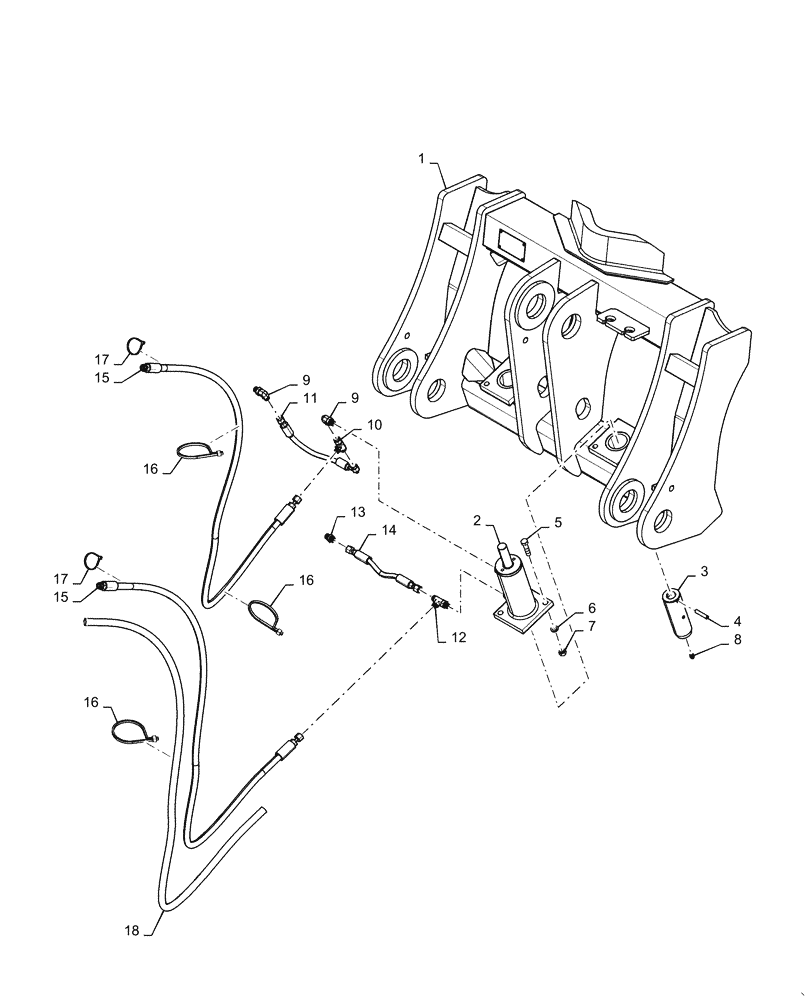

Схема запчастей Case 621F - (82.100.05) - ACS QUICK COUPLER, Z-BAR (82) - FRONT LOADER & BUCKET
17
12
11
1
17
16
4
10
14
15
3
13
6
7
16
9
2
8
5
18
9
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494321

FRAME

Z-Bar

1шт.

2

84538634

HYDRAULIC CYLINDER

For Seal Kit See 19

2шт.

3

84538636

PIN,50.8mm OD x 162.6mm L

Coupler Plunger

2шт.

4

87023162

PIN,9.53mm OD x 44.45mm L

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

9

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

2шт.

10

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

11

84538677

HYDRAULIC HOSE

1шт.

12

700-456

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

14

84539838

HYDRAULIC HOSE

1шт.

15

84577430

HOSE ASSY.

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

17

86566989

CABLE TIE,208mm L

4шт.

18

86020938

SLEEVE

1шт.

19

84538637

SEAL

Seal Kit

1шт.
