(82.100.01[07]) - 4.5 CU YARD LIGHT MATERIAL BUCKET AND ATTACHMENTS

Запчасти Case 621F (82.100.01[07]) - 4.5 CU YARD LIGHT MATERIAL BUCKET AND ATTACHMENTS (82) - FRONT LOADER & BUCKET

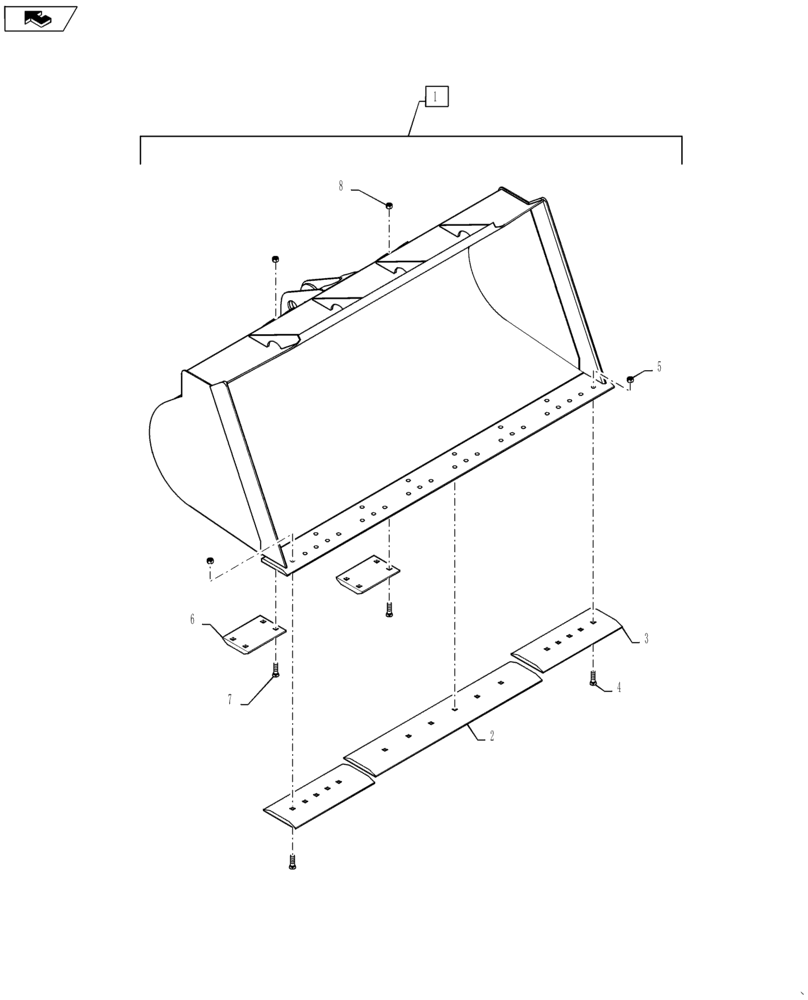

Схема запчастей Case 621F - (82.100.01[07]) - 4.5 CU YARD LIGHT MATERIAL BUCKET AND ATTACHMENTS (82) - FRONT LOADER & BUCKET
1
home
7
5
2
3
4
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84269187

BUCKET, LIGHT MATERI

4.5 Cu Yd, Incl 2 - 8

1шт.

2

372081A1

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 254mm W x 1324mm L

Center Bolt On

1шт.

3

372082A2

EDGE, CUTTING

Outer Bolt On

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

6

360939A1

PLATE

Bolt On

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

8шт.
