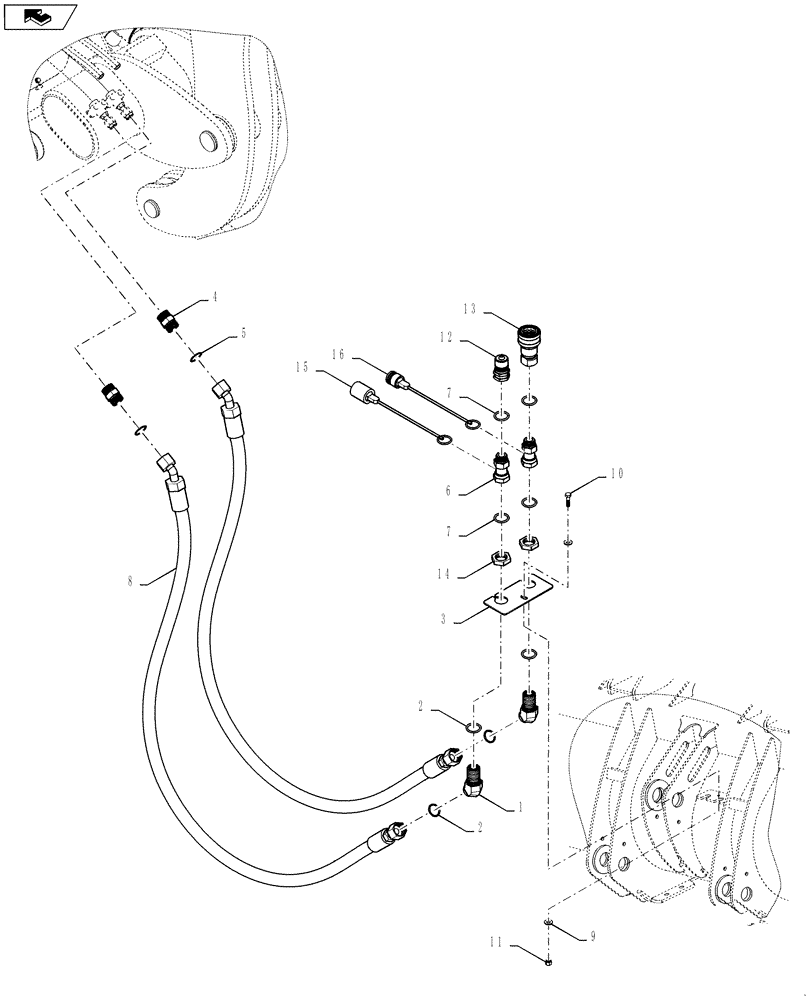

Запчасти Case 621F (82.100.01[05]) - GRAPPLE BUCKET HYD LINES (82) - FRONT LOADER & BUCKET

1

87302137

ELBOW,45 Degree, 1 3/16"-12, ORFS, Blkhd

Also Order # 2

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Used With #1

2шт.

3

84215434

RETAINING PLATE

1шт.

4

201-109

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

Also Order #5

2шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Used With #4

2шт.

6

84215429

FITTING

Also Order #7

2шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Used With #6

2шт.

8

84215432

HOSE ASSY.

Grapple Bucket

2шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

10

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

12

84215408

FITTING

Hyd Quick Coupler Nipple

1шт.

13

84215410

FITTING

Hyd Quick Coupler Fitting

1шт.

14

86639062

BHD LOCK NUT,1-3/16"-12 ORFS, Bulkhead

2шт.

15

114533A1

DUST CAP

1шт.

16

114534A1

PLUG

Dust

1шт.
