(82.100.01[03]) - 3.0 CU YARD BUCKET AND ATTACHMENT

Запчасти Case 621F (82.100.01[03]) - 3.0 CU YARD BUCKET AND ATTACHMENT (82) - FRONT LOADER & BUCKET

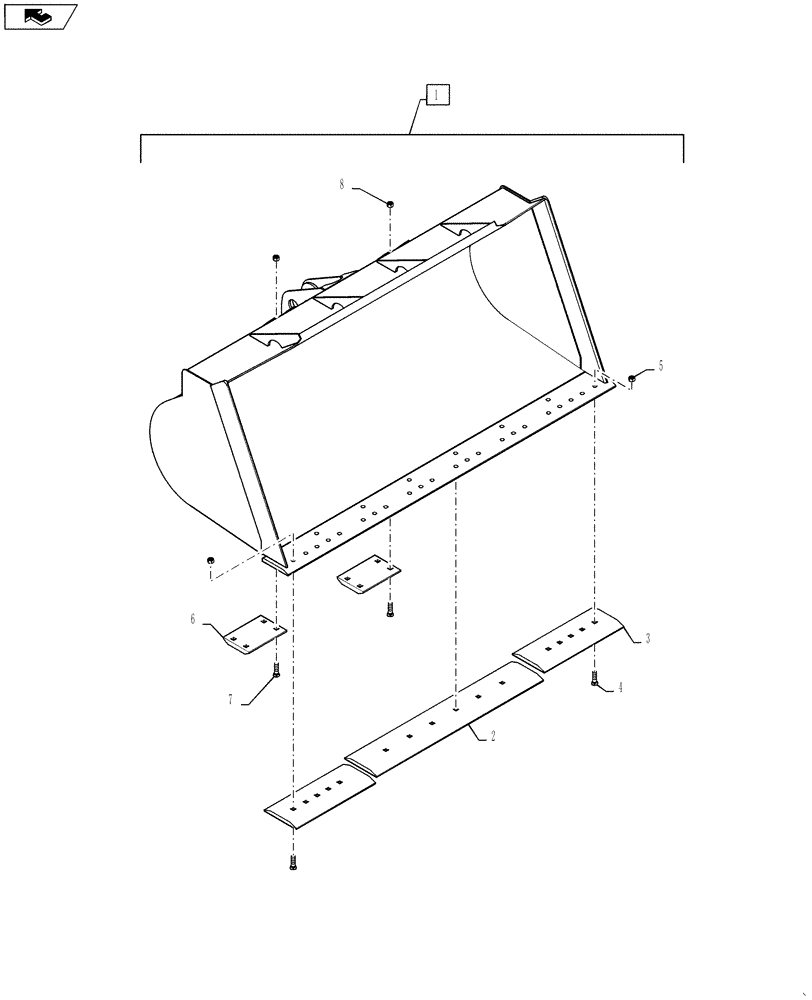

Схема запчастей Case 621F - (82.100.01[03]) - 3.0 CU YARD BUCKET AND ATTACHMENT (82) - FRONT LOADER & BUCKET
7
2
4
home
1
8
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84269180

BUCKET

3.00 Cu Yd Bucket With Blade, Incl 2 - 8

1шт.

2

372081A1

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 254mm W x 1324mm L

Center Bolt On

1шт.

3

372082A2

EDGE, CUTTING

Outer Bolt On

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

6

360939A1

PLATE

Bolt On Skid

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

8шт.
