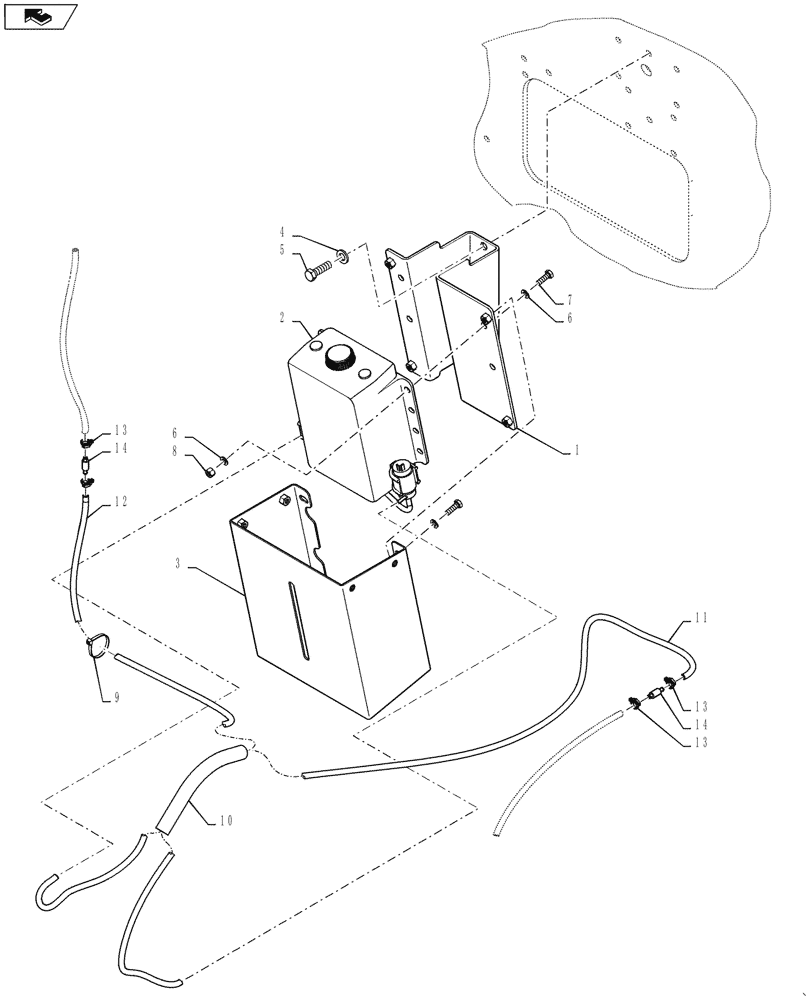

Запчасти Case 621F (55.518.01[01]) - WASHER BOTTLE MOUNTING (55) - ELECTRICAL SYSTEMS

1

84372378

BRACKET

Washer Bottle

1шт.

2

236781A1

CONTAINER

Windshield Washer, Incl Pumps and Cap

1шт.

2

87439461

CAP

1шт.

2

48042633

PUMP,24V

2шт.

3

84257052

PROTECTION PLATE

Washer Bottle

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

10

84228376

CONDUIT

1шт.

11

84290935

HOSE

70 Inch

1шт.

12

324468A1

HOSE

65 Inch

1шт.

13

84037530

VALVE

2шт.

14

84477330

HOSE CLAMP,8.97mm - 10.11mm

4шт.
