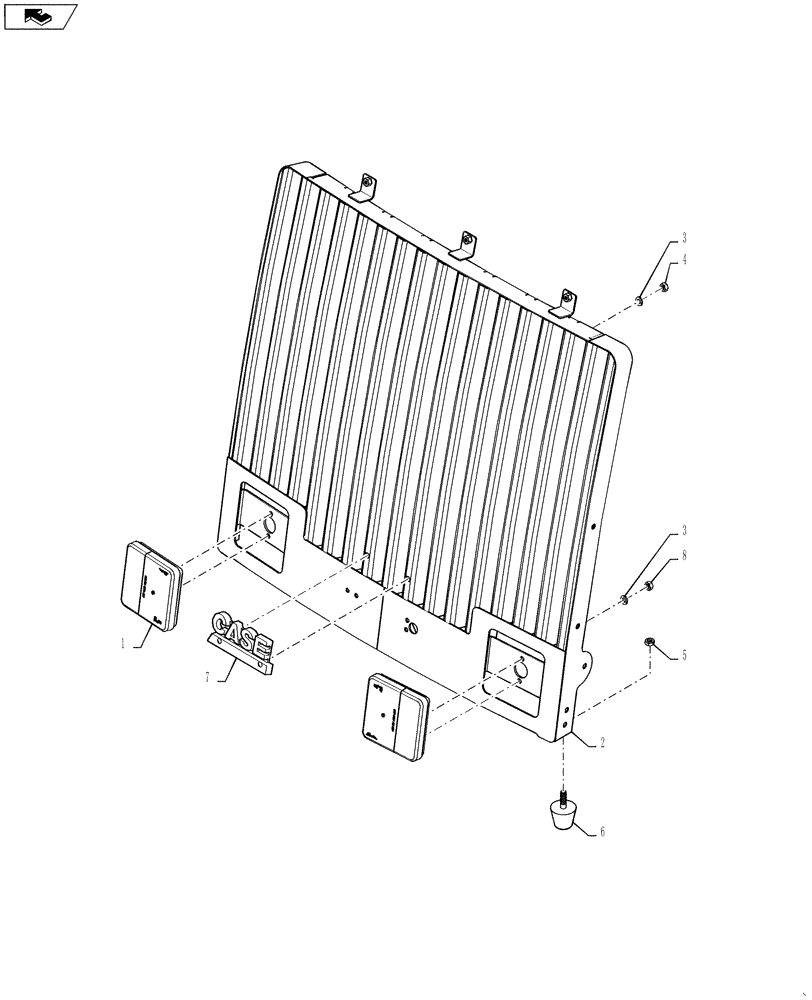

(55.404.04) - REAR LIGHT INSTALLATION (NA,INT)

Запчасти Case 621F (55.404.04) - REAR LIGHT INSTALLATION (NA,INT) (55) - ELECTRICAL SYSTEMS

Схема запчастей Case 621F - (55.404.04) - REAR LIGHT INSTALLATION (NA,INT) (55) - ELECTRICAL SYSTEMS
6
4
5
8
home
7
1
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84373506

LAMP,LED

Sealed, Rear Combination; Component Parts Not Serviced Separately

2шт.

2

87591668

GRILLE

Rear, CNH Black

1шт.

3

892-11006

LOCK WASHER,M6

4шт.

4

825-1406

NUT,M6, Cl 8

4шт.

5

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

6

N7673

BUMPER

2шт.

7

186989A1

EMBLEM

Case Logo

1шт.

8

131-431

PUSH-ON NUT,Self, Threading, 1/4"

For Emblem

2шт.
