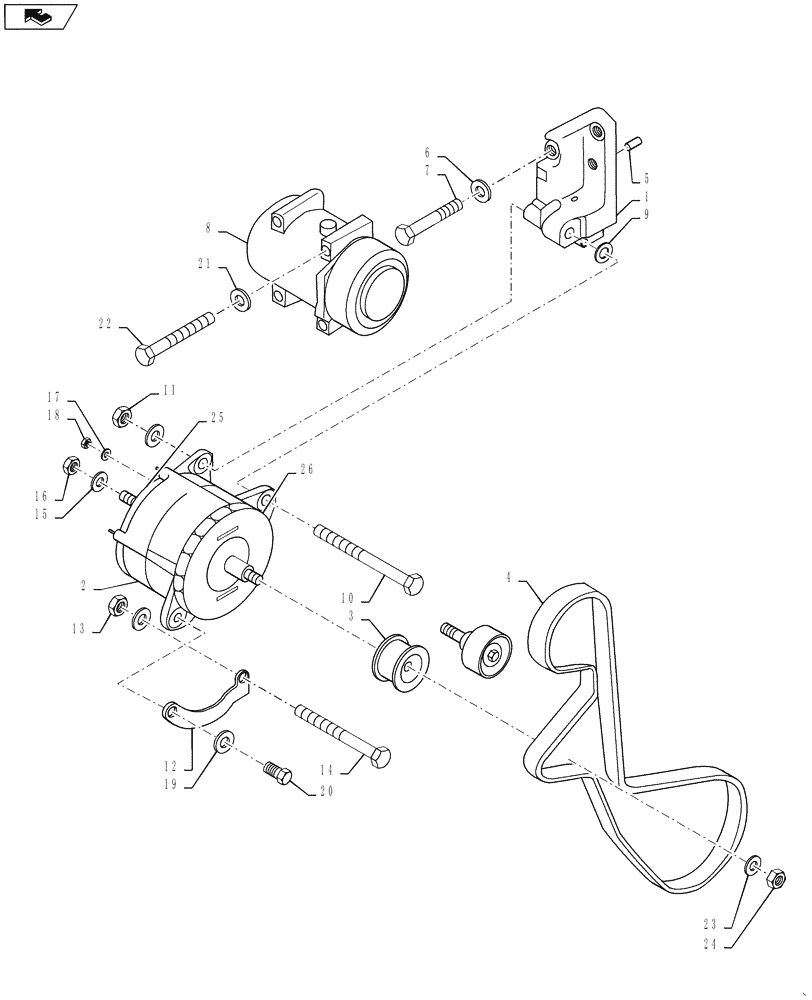

Запчасти Case 621F (55.301.01) - ALTERNATOR, MOUNTING WITH AIR CONDITIONING (55) - ELECTRICAL SYSTEMS

1

87547181

BRACKET

Alternator

1шт.

2

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

24V, 65 amp;

1шт.

2

1964860C1GV

ALTERNATOR

1шт.

2

1964860C1R

REMAN-ALTERNATOR

621F WHEEL LOADER - TIER 4 (NA), 24V, 65 amp, MOUNTING W/ AIR CONDITIONING (1/12-)

1шт.

2

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

3

A189616

PULLEY

Alternator

1шт.

4

87397416

BELT,95.49 mm W x 1725.00 mm L

With A/C

1шт.

5

837-6035

DOWEL,M6 x 35

2шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

7

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

8

8500795

AIRCOND. COMPRESSOR,W/ Pulley

1шт.

8500795R

REMAN-COMPRESSOR,W/ Pulley

621F TIER 4 (1/12-)

1шт.

8500795C

CORE-COMPRESSOR

Return Number

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

1шт.

11

231-4248

NUT,1/2"-13, GB

1шт.

12

8501098

BRACE

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

15

492-11044

LOCK WASHER,7/16"

1шт.

16

425-107

NUT,7/16"-14, G5

1шт.

17

892-11004

LOCK WASHER,M4

1шт.

18

824-1404

NUT,M4, Cl 5

1шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

20

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

21

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

5шт.

22

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

3шт.

23

195-2070

WASHER,0.66" ID x 1.88" OD x 0.08" Thk

5/8-18

1шт.

24

408

NUT,5/8" - 18, Gr 5

1шт.

25

1964967C1

VOLTAGE REGULATOR

1шт.

26

1964736C1

FAN

1шт.
