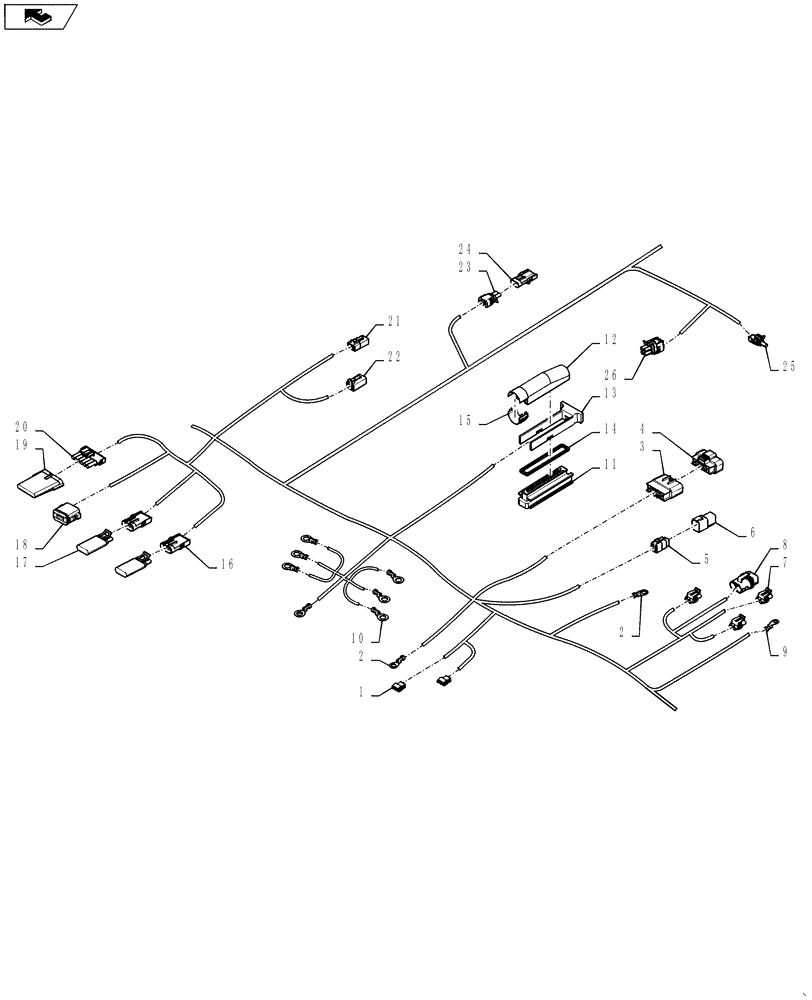

Запчасти Case 621F (55.100.14[02]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS

1

199436A1

CONNECTOR, ELEC

CONNECTOR

2шт.

2

1964722C1

TERMINAL CONNECTOR

Ring Terminal

2шт.

3

388708A1

CONNECTOR, ELEC

CONNECTOR

1шт.

4

388710A1

CONNECTOR, ELEC

CONNECTOR

1шт.

5

280451A1

CONNECTOR,ELECTRIC

6-Cavity Plug

1шт.

6

280453A1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Receptacle

1шт.

7

256340A1

CONNECTOR, ELEC

CONNECTOR

3шт.

8

409084A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

9

1964710C1

TERMINAL CONNECTOR

Ring

1шт.

10

1964718C1

TERMINAL CONNECTOR

Ring

7шт.

11

Included With Item 20 Fig 55.100.14

1шт.

12

Included With Item 20 Fig 55.100.14

1шт.

13

Included With Item 20 Fig 55.100.14

1шт.

14

Included With Item 20 Fig 55.100.14

1шт.

15

Included With Item 20 Fig 55.100.14

1шт.

16

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Cavity Receptacle

2шт.

17

A187874

MODULE

2шт.

18

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Cavity

1шт.

19

A187813

DIODE

1шт.

20

245488C1

ELEC CONNECTOR,6 Pin

6-Cavity Plug

1шт.

21

Included With Item 20 Fig 55.100.14

1шт.

22

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-Cavity Plug

1шт.

23

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Receptacle

1шт.

25

245480C1

ELEC CONNECTOR,1 Pin

1-Cavity Plug

1шт.

26

245715C1

ELEC CONNECTOR,4 Pin

4-Cavity Plug

1шт.
