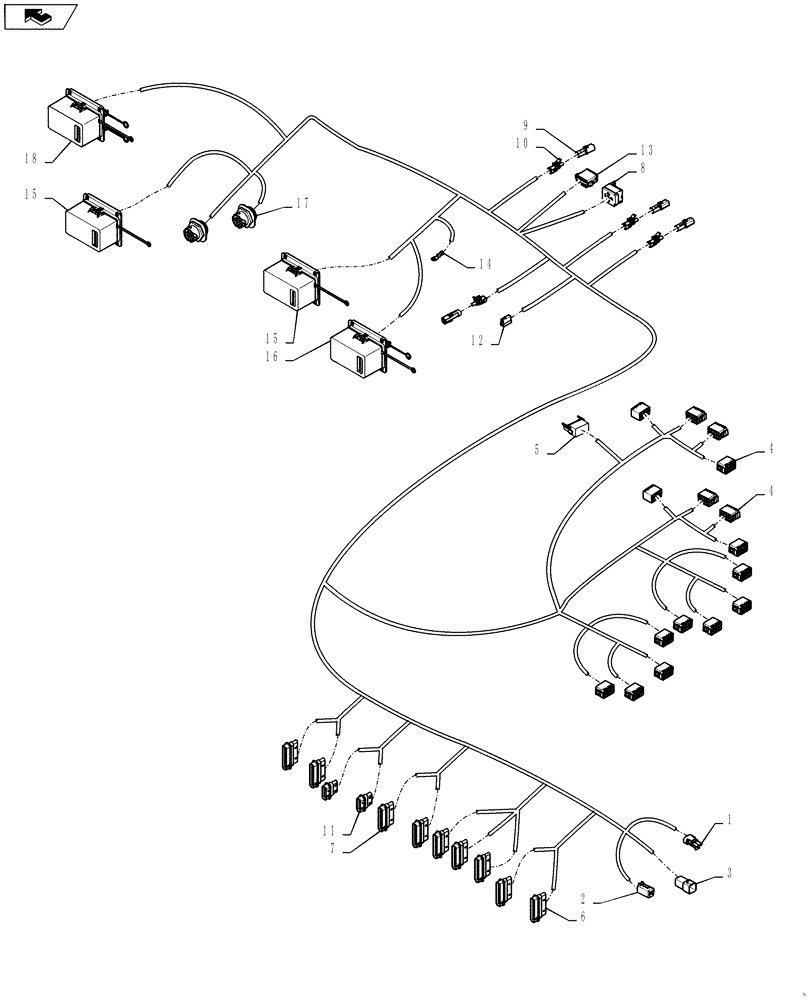

Запчасти Case 621F (55.100.14[01]) - HARNESS, MAIN CAB (55) - ELECTRICAL SYSTEMS

1

245482C1

ELEC CONNECTOR,2 Pin

2-Cavity Plug

1шт.

2

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Cavity Plug

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Receptacle

1шт.

4

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

10-Cavity Plug

16шт.

5

Included With Item 20 Fig 55.100.14

1шт.

6

12-Way Splice, Included With Item 20 Fig 55.100.14

7шт.

7

Splice 3x4 Way, Included With Item 20 Fig 55.100.14

2шт.

8

245731C1

CONNECTOR, ELEC

CONNECTOR 5-Cavity Plug

1шт.

9

245481C1

CONNECTION,ELECTRIC

1-Cavity Receptacle

2шт.

10

245480C1

ELEC CONNECTOR,1 Pin

1-Cavity Plug

2шт.

11

87324391

TERMINAL CONNECTOR

6-Way Splice

2шт.

12

3227856R1

CONNECTION

2-Cavity Receptacle

1шт.

13

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Cavity Connector

1шт.

14

1964721C1

TERMINAL CONNECTOR

1шт.

15

87312843

FUSE BOX

2шт.

16

87315249

FUSE BOX

1шт.

17

87736919

CONTACT HOUSING,Female, 9 Pole

9-Way Receptacle

2шт.

18

87315248

RELAY

1шт.
