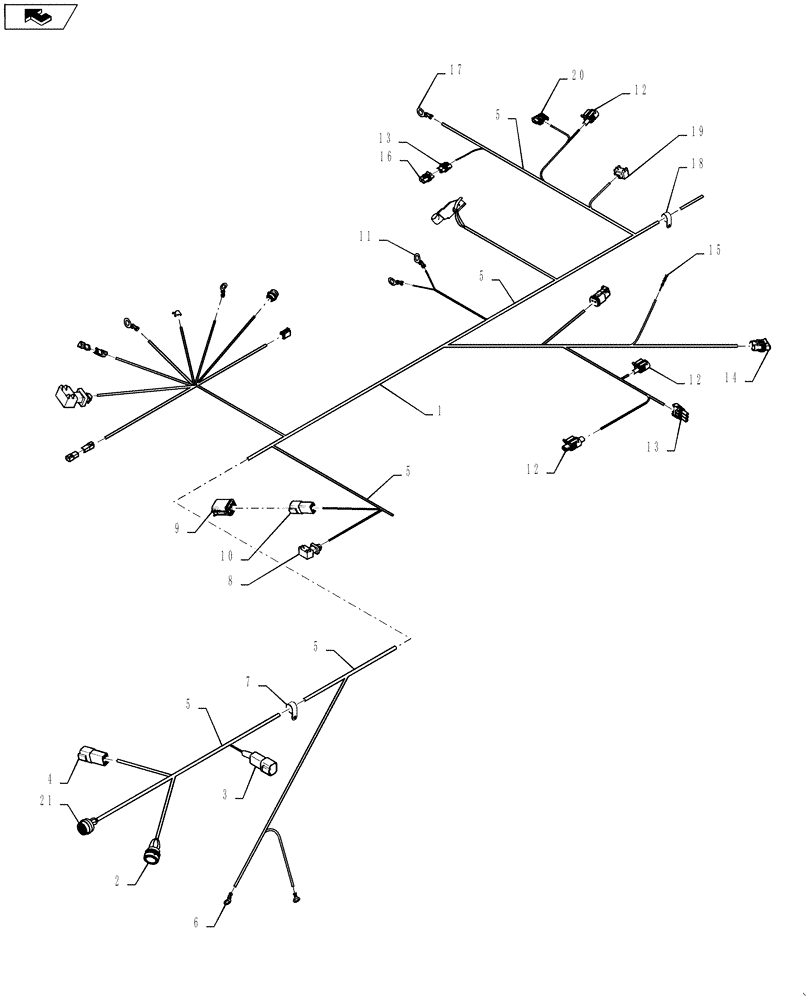

Запчасти Case 621F (55.100.09[02]) - HARNESS, ENGINE AND REAR CHASSIS (55) - ELECTRICAL SYSTEMS

1

84494410

HARNESS

Engine And Rear Chassis

1шт.

2

87703998

TERMINAL CONNECTOR

1шт.

3

225411C1

CONNECTOR, ELEC

CONNECTOR 8-Cavity Recepticle

1шт.

4

277431A1

CONNECTOR, ELEC

CONNECTOR 1-Cavity Plug

1шт.

5

Butt Splice, Included with 1

10шт.

6

3227856R1

CONNECTION

2-Cavity Recepticle

2шт.

7

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

8

256340A1

CONNECTOR, ELEC

CONNECTOR

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Recepticle

1шт.

10

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Cavity Plug

1шт.

11

1964703C1

TERMINAL CONNECTOR

Ring

2шт.

12

84058092

CONTACT HOUSING,120 Ohm Resistor

3шт.

13

84062580

CONNECTOR, ELEC

CONNECTOR

1шт.

14

Included with 1

1шт.

15

182069A1

CONNECTOR, ELEC

CONNECTOR

2шт.

16

182068A1

CONNECTOR, ELEC

CONNECTOR 2-Cavity Recepticle

1шт.

17

1964706C1

TERMINAL CONNECTOR

Ring

1шт.

18

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

19

8602416

CONNECTOR,ELECTRIC

3-Pin Plug

1шт.

20

84190317

WIRE CONNECTOR,Female, 5 Cavities

CONNECTOR

1шт.

21

374973A1

CONNECTOR,ELECTRIC

31-Cavity Plug

1шт.
